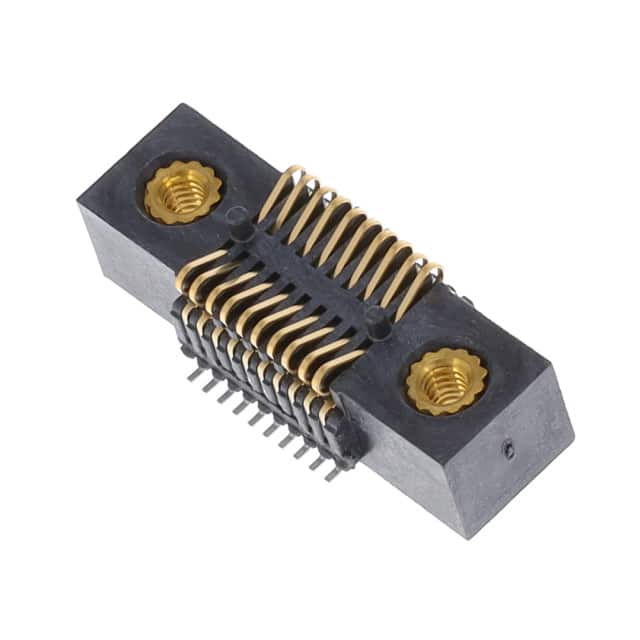

FSI-110-06-L-D-E-AD The Samtec FSI-110-06-L-D-E-AD is a 20-position, 2-row stacking compression connector with a 1.00mm pitch. It features surface mount termination, gold contact finish, and a 6.00mm board height.
Mfr Part #:

FSI-110-06-L-D-E-AD

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The Samtec FSI-110-06-L-D-E-AD is a 20-position, 2-row stacking compression connector with a 1.00mm pitch. It features surface mount termination, gold contact finish, and a 6.00mm board height.
✓ Total Stock: 3 pcs
$ Price Range: $4.85 - $8.77

FSI-110-06-L-D-E-AD Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FSI-110-06-L-D-E-AD Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Current Rating
Features
Height Above Board
Insulator Material
Mounting Type
Number of Positions
Number of Rows
Operating Temperature Range
Pitch
SMT Lead Coplanarity
Tape & Reel
Termination Style
View Similar Products (0)

FSI-110-06-L-D-E-AD Description

Short technical summary and product information.

The Samtec FSI-110-06-L-D-E-AD is a one-piece stacking compression connector from the FSI series, designed for board-to-board mezzanine applications. It offers 20 positions arranged in 2 rows with a 1.00mm pitch, enabling compact and high-density interconnections.



This connector features a surface mount termination style with gold-plated beryllium copper contacts, ensuring reliable electrical performance. The contact finish thickness is 10.0 microinches (0.25 micrometers) of gold over 50 microinches of nickel. It is rated for a current of 2.8 A per pin (with one pin powered per row) and operates over a temperature range of -55°C to +125°C.



The insulator is made from liquid crystal polymer, and the connector includes features such as a board guide, mating guide, and mounting flange for secure alignment and attachment. The height above board is 6.00mm (0.236 inches), and the maximum SMT lead coplanarity is 0.10mm.

FSI-110-06-L-D-E-AD Quick Information

Product Type: Stacking Compression Connector
Series: FSI
Canonical Name: Samtec FSI Series 20 Position 1.00mm Pitch Stacking Compression Connector
Subcategory: Board-to-Board Array

FSI-110-06-L-D-E-AD Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

FSI-110-06-L-D-E-AD Estimated Pricing

Qty Low High
1+ $8.77 $8.77
10+ $8.43 $8.43
115+ $6.57 $6.57
506+ $6.12 $6.12
1,012+ $5.00 $5.00
2,001+ $4.85 $4.85

Estimated market price range - modelled values for guidance only, not live distributor offers.

FSI-110-06-L-D-E-AD Features

  • 20 positions in 2 rows with 1.00mm pitch.
  • Surface mount termination with gold contacts.
  • Rated for 2.8 A per pin current.
  • Operating temperature range -55°C to +125°C.
  • Includes board guide and mounting flange.

FSI-110-06-L-D-E-AD Applications

  • Board-to-board mezzanine stacking applications.
  • High-density interconnect in compact electronics.
  • Applications requiring reliable gold-plated contacts.

FSI-110-06-L-D-E-AD FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the FSI-110-06-L-D-E-AD have?

It has 20 positions arranged in 2 rows.

What is the pitch of this connector?

The pitch is 1.00mm.

What is the current rating per pin?

The current rating is 2.8 A per pin (with 1 pin powered per row).

What is the mounting type?

The mounting type is surface mount.

What is the operating temperature range?

The operating temperature range is -55°C to +125°C.

What is the contact finish?

The contact finish is gold with a thickness of 10.0 microinches (0.25 micrometers).

What is the height above board?

The height above board is 6.00mm (0.236 inches).
