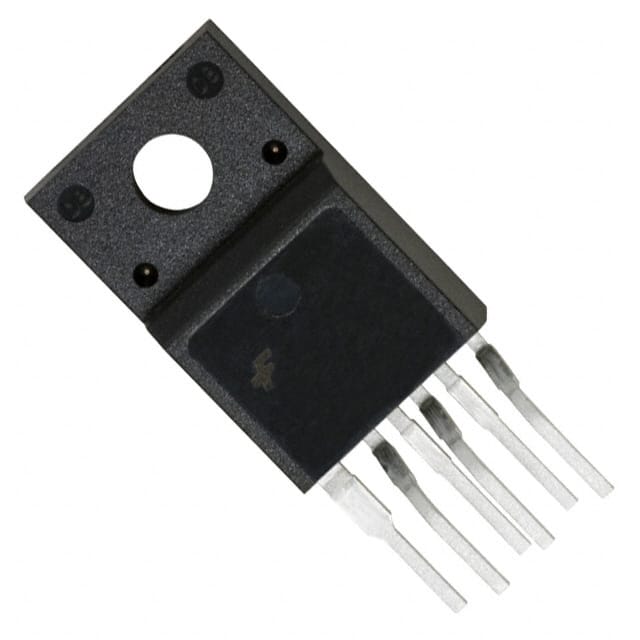

FSGM0765RWDTU The FSGM0765RWDTU is an integrated Green-Mode Power Switch from ON Semiconductor, designed for offline SMPS. It features a 650V SENSEFET and operates at 66kHz.
Mfr Part #:

FSGM0765RWDTU

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The FSGM0765RWDTU is an integrated Green-Mode Power Switch from ON Semiconductor, designed for offline SMPS. It features a 650V SENSEFET and operates at 66kHz.
✓ Total Stock: 3,600 pcs
$ Price Range: $0.75

FSGM0765RWDTU Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,600 pcs
On Request
3600 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FSGM0765RWDTU Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Duty Cycle
Fault Protection
Frequency
Internal Switch(s)
Lead Style
Mounting Type
Operating Temperature
Output Isolation
Power (Watts)
SVHC Present
Supplier Device Package
Topology
Voltage
View Similar Products (0)

FSGM0765RWDTU Description

Short technical summary and product information.

The FSGM0765RWDTU is an integrated Green-Mode Power Switch from ON Semiconductor, designed for offline Switch-Mode Power Supplies (SMPS). It combines a PWM controller and a SENSEFET, minimizing external components for cost-effective flyback converter designs.



Key electrical specifications include an operating voltage range of 7.5V to 26V, a fixed operating frequency of 66 kHz, and a maximum output power of 90W in an open-frame configuration. The device incorporates a high-voltage SENSEFET rated at 650V and includes a 15ms built-in soft-start function. Various protection features are integrated, such as Overload Protection (OLP), Over-Voltage Protection (OVP), Abnormal Over-Current Protection (AOCP), Internal Thermal Shutdown (TSD), Output-Short Protection (OSP), and Under-Voltage Lockout (UVLO).



This component is supplied in a TO-220F-6L package suitable for through-hole mounting. It operates within a temperature range of -40°C to +125°C (TJ). The device is Pb-free and designed for applications such as power supplies for LCD TVs, monitors, set-top boxes, and DVD combinations.

FSGM0765RWDTU Quick Information

Product Type: AC DC Converter
Canonical Name: FSGM0765R Green-Mode Power Switch
Subcategory: AC DC Converters

FSGM0765RWDTU Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb−free devices

FSGM0765RWDTU Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

FSGM0765RWDTU Features

  • Integrated Green-Mode Power Switch.
  • 650V internal high-voltage SENSEFET.
  • 66 kHz precision fixed operating frequency.
  • Comprehensive fault protection functions.
  • TO-220F-6L package for through-hole mounting.

FSGM0765RWDTU Applications

  • Offline Switch-Mode Power Supplies.
  • Cost-effective flyback converter designs.
  • Power supplies for LCD TVs.
  • Power supplies for monitors and STBs.
  • Power supplies for DVD combinations.

FSGM0765RWDTU FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the FSGM0765RWDTU?

The operating voltage range is 7.5 V to 26 V.

What package type is the FSGM0765RWDTU supplied in?

It is supplied in a TO-220-6 Full Pack, Formed Leads package.

What is the operating temperature range for this component?

The operating temperature range is -40°C to +125°C (TJ).

Is the FSGM0765RWDTU RoHS compliant?

Yes, it is RoHS3 Compliant.

What is the maximum output power of the FSGM0765RWDTU?

The maximum output power is 90 W in an open-frame design.

What is the operating frequency of the FSGM0765RWDTU?

The operating frequency is 66 kHz.

Does the FSGM0765RWDTU have integrated protection features?

Yes, it includes Current Limiting, Over Load, Over Temperature, Over Voltage, and Short Circuit protection.
