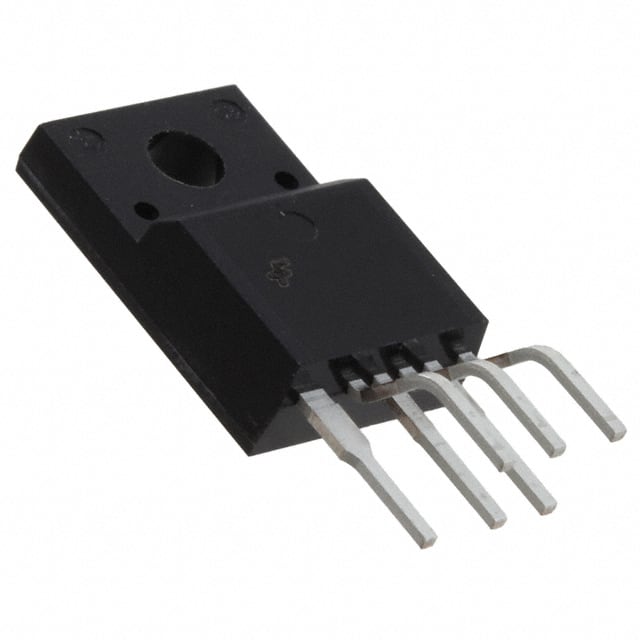

FSGM0465RWDTU The FSGM0465RWDTU is an integrated Green-Mode Power Switch from On Semiconductor, designed for offline Switch-Mode Power Supplies. It features a 650V internal SENSEFET and provides up to 70W of output power.
Mfr Part #:

FSGM0465RWDTU

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The FSGM0465RWDTU is an integrated Green-Mode Power Switch from On Semiconductor, designed for offline Switch-Mode Power Supplies. It features a 650V internal SENSEFET and provides up to 70W of output power.
✓ Total Stock: 62 pcs
$ Price Range: $0.75

FSGM0465RWDTU Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
62 pcs
On Request
62 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FSGM0465RWDTU Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Duty Cycle
Fault Protection
Frequency
Internal Switch(s)
Lead Style
Mounting Type
Operating Temperature
Output Isolation
Power
Power (Watts)
Supplier Device Package
Supplier Package
Topology
Voltage
View Similar Products (0)

FSGM0465RWDTU Description

Short technical summary and product information.

The FSGM0465RWDTU from On Semiconductor is an integrated Green-Mode Power Switch designed for offline Switch-Mode Power Supplies (SMPS). It combines a Pulse Width Modulation (PWM) controller with a SENSEFET, minimizing external components for cost-effective flyback converter designs.



Key electrical specifications include a 650V internal SENSEFET, a fixed operating frequency of 66 kHz, and a maximum output power of 70W. It operates within a voltage range of 7.5V to 26V and has a current limit of 1.80A. The device incorporates various protection functions such as Overload Protection (OLP), Over-Voltage Protection (OVP), Abnormal Over-Current Protection (AOCP), Internal Thermal Shutdown (TSD), and Output-Short Protection (OSP).



This component features a built-in soft-start function of 15ms and operates within a junction temperature range of -40°C to 125°C. It is supplied in a TO-220F-6L package with formed leads, suitable for through-hole mounting.



The FSGM0465RWDTU is suitable for applications such as power supplies for LCD TVs, monitors, set-top boxes, and DVD combinations. Its design aims to reduce total cost, component count, size, and weight while increasing efficiency and system reliability.

FSGM0465RWDTU Quick Information

Product Type: AC DC Converters, Offline Switches
Canonical Name: FSGM0465RWDTU Green-Mode Power Switch
Subcategory: Offline Switch

FSGM0465RWDTU Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

FSGM0465RWDTU Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

FSGM0465RWDTU Features

  • Integrated Green-Mode Power Switch.
  • 650V internal High-Voltage SENSEFET.
  • 66 kHz fixed operating frequency.
  • 70W maximum output power.
  • Comprehensive protection functions included.

FSGM0465RWDTU Applications

  • Power supplies for LCD TVs.
  • Power supplies for monitors.
  • Power supplies for STB.
  • Power supplies for DVD combinations.

FSGM0465RWDTU FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the FSGM0465RWDTU?

7.5V to 26V.

What package is the FSGM0465RWDTU available in?

TO-220-6 Full Pack with formed leads (TO-220F-6L).

What is the operating temperature range?

-40°C to 125°C (junction temperature).

What is the maximum output power?

70W.

What is the switching frequency?

66kHz.

What is the maximum duty cycle?

70%.

What is the integrated SENSEFET voltage rating?

650V.
