| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

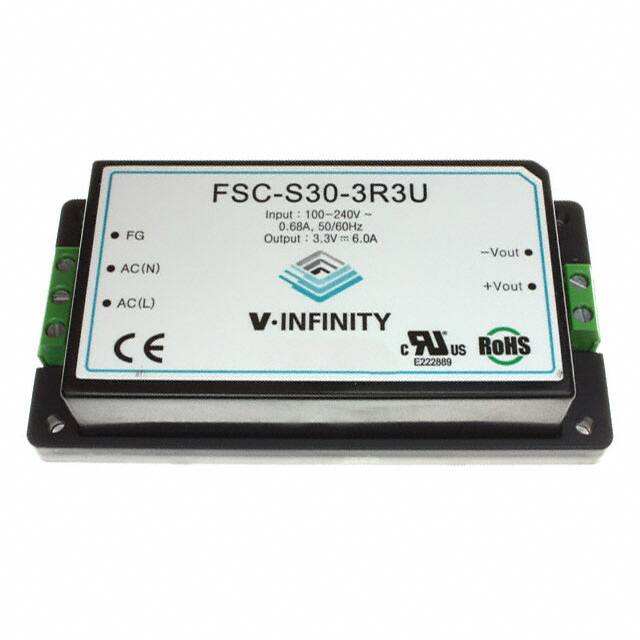

The CUI Inc. FSC-S30-3R3U is an enclosed AC-DC converter designed for ITE (Commercial) applications. It operates with a universal input voltage range of 85-264 VAC or 110-340 VDC, providing a stable 3.3V output at up to 6.0A, delivering a maximum power of 19.8W.
Key electrical specifications include an efficiency of 78%, a line regulation of +/-1%, and a load regulation of +/-1%. The converter offers protection features such as over-current and over-temperature shutdown. It has a compact, enclosed design suitable for chassis mounting.
With dimensions of 116.0mm x 58.7mm x 28.0mm, this converter is built for reliability, featuring a Mean Time Between Failures (MTBF) of 3.0 x 10^6 hours. It operates within a temperature range of -10°C to 60°C and meets safety standards like CB and CE.
The output voltage is 3.3V.
The maximum output current is 6.0A.
The maximum power output is 19.8W.
The operating temperature range is -10°C to 60°C.
The dimensions are 116.0mm x 58.7mm x 28.0mm.
It is approved to CB and CE standards.
