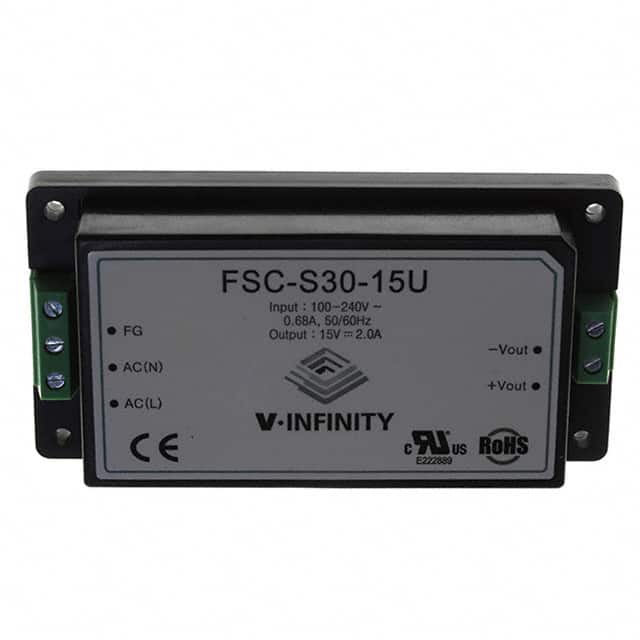

The CUI Inc. FSC-S30-15U is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a single output voltage of 15V at a maximum current of 2A, delivering a total power of 30W.
This converter features a universal input voltage range of 85-264 VAC or 110-340 VDC, with an efficiency rating of 83%. Key electrical specifications include a line regulation of ±1% and a load regulation of ±1%. The output is isolated with a 3000 VAC rating.
Designed for reliability, the FSC-S30-15U operates within a temperature range of -10°C to 60°C and includes protection features such as over-temperature and short-circuit protection. It is built with a chassis mount type and comes in a box package.
Safety approvals include CB and CE, with compliance to standard 60950-1. The unit has a typical MTBF of 3.0 x 10^6 hours.
The AC input range is 85-264 VAC, and the DC input range is 110-340 VDC.
The output is 15V at 2A, providing 30W of power.
-10°C to 60°C.
Up to 83%.
Enclosed chassis mount package measuring 116.0 x 58.7 x 28.0 mm.
3000 VAC between primary and secondary.
3.0 x 10^6 hours.
