| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

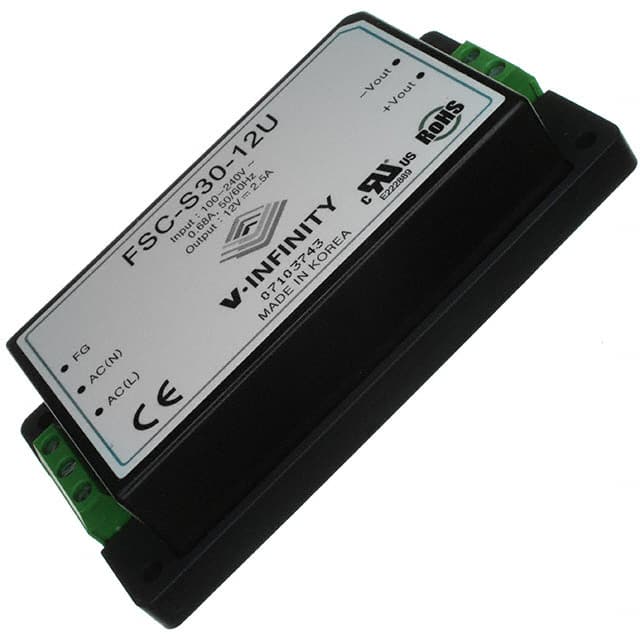

The CUI Inc. FSC-S30-12U is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a 12V output at up to 2.5A, delivering a total power of 30W. The converter operates with a universal input voltage range of 85-264 VAC or 110-340 VDC.
Key features include high efficiency up to 83%, a 3 kV isolation voltage, and a wide operating temperature range from -10°C to 60°C. It also incorporates built-in protections such as over-current and over-temperature shutdown. The compact dimensions of 116.0mm x 58.7mm x 28.0mm make it suitable for chassis mounting.
This series is designed with features like an encapsulated compact case, built-in EMI filter, and fixed frequency operation. It meets safety standards including CB, CE, and 60950-1.
The input voltage range is 85-264 VAC or 110-340 VDC at 47-440 Hz.
It provides a single 12V output at up to 2.5A (30W).
-10°C to 60°C.
83% typical.
Over-current protection (automatic recovery above 105% rating) and over-temperature protection at 145°C.
3 kV between primary and secondary.
Chassis mount, packaged in a box.
