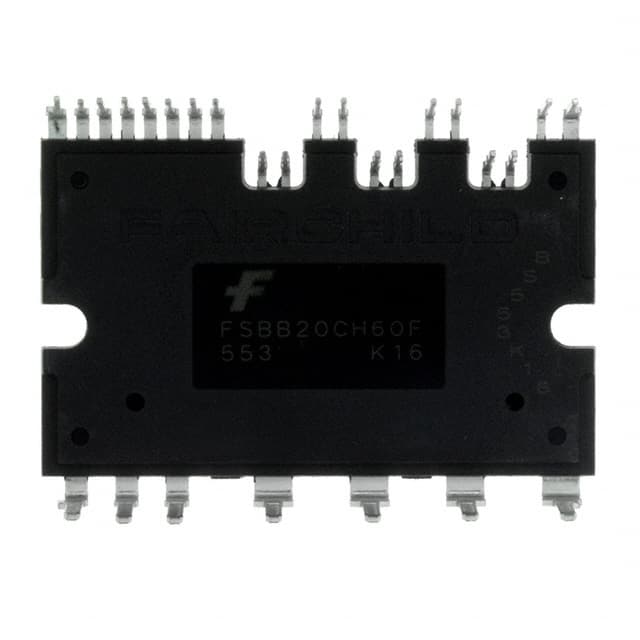

FSBB20CH60F IGBT power driver module with 3-phase configuration, rated for 20A output current and 2500Vrms isolation. Housed in a 27-PowerDIP through-hole package.
Mfr Part #:

FSBB20CH60F

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
IGBT power driver module with 3-phase configuration, rated for 20A output current and 2500Vrms isolation. Housed in a 27-PowerDIP through-hole package.
✓ Total Stock: 7,283 pcs

FSBB20CH60F Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
6,565 pcs
On Request
6565 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
718 pcs
On Request
718 pcs On Request 1 On Request On Request 19+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FSBB20CH60F Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Configuration
Current
Industrial Grade
Medical Grade
Mounting Type
Type
Voltage
View Similar Products (0)

FSBB20CH60F Description

Short technical summary and product information.

The FSBB20CH60F is an IGBT power driver module designed for AC motor control applications. It features a 3-phase configuration suitable for driving three-phase motors. The module is rated for a nominal output current of 20A and provides an isolation voltage of 2500Vrms, ensuring reliable performance in harsh environments.



The device is housed in a 27-PowerDIP module with a package size of 1.205" x 30.60mm, designed for through-hole mounting. This package facilitates easy integration into printed circuit boards and power assemblies.



The FSBB20CH60F is listed as RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 Unlimited, indicating no moisture sensitivity restrictions. It is manufactured by ON Semiconductor, a leading supplier of power management solutions.

FSBB20CH60F Quick Information

Product Type: Power Driver Module
Series: Motion SPM 3 Series
Canonical Name: IGBT Power Driver Module 3-Phase 20A 2500Vrms Through Hole 27-PowerDIP
Subcategory: IGBT

FSBB20CH60F Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FSBB20CH60F Features

  • IGBT technology for efficient power switching.
  • 3-phase configuration for motor drive applications.
  • Rated for 20A nominal output current.
  • 2500Vrms isolation voltage rating.
  • Through-hole mounting in 27-PowerDIP package.

FSBB20CH60F Applications

  • Ideal for AC motor control applications.
  • Used in 3-phase inverter circuits.
  • Suitable for hybrid power modules.

FSBB20CH60F FAQs

7 frequently asked questions generated from this part’s specifications.
What is the package type of FSBB20CH60F?

27-PowerDIP Module (1.205", 30.60mm).

Is the FSBB20CH60F RoHS compliant?

Yes, listed as RoHS3 compliant.

What is the mounting type?

Through Hole.

What is the output current rating?

20 A nominal.

What is the isolation voltage?

2500 Vrms.

What is the configuration?

3 Phase.

What technology is used?

IGBT.
