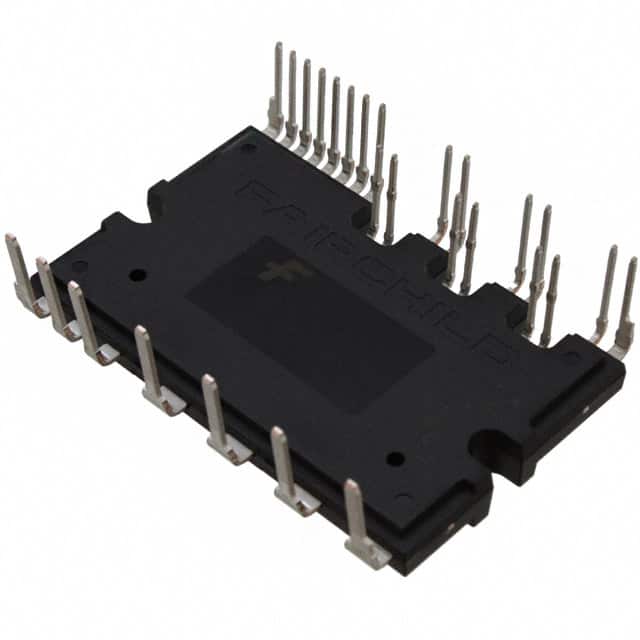

The FSBB15CH60 is a 3-phase IGBT power module manufactured by ON Semiconductor. It is designed for AC motor control applications and other power inverter systems. The module features a 15A output current rating and an isolation voltage of 2500Vrms, ensuring robust performance in high-voltage environments.
The module is housed in a 27-PowerDIP package (1.205", 30.60mm) with through-hole mounting, which provides secure mechanical attachment and reliable thermal management. The 3-phase configuration integrates six IGBTs and associated diodes, simplifying the design of power stages.
This component is suitable for industrial motor drives, power supplies, and renewable energy inverters. Designers should consider appropriate heatsinking and gate drive circuitry to fully utilize the module's capabilities. The through-hole package facilitates manual assembly and prototyping.
| Qty | Low | High |
|---|---|---|
| 17+ | $17.61 | $17.61 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a 3-phase IGBT power module.
It is an IGBT (Insulated Gate Bipolar Transistor) power module.
The output current is 15 A.
The isolation voltage is 2500 Vrms.
Through-hole mounting.
The FSBB15CH60 comes in a 27-PowerDIP Module (1.205", 30.60mm) with through-hole mounting.
According to existing data, the part is RoHS3 Compliant, but this is unverified low-confidence data.
