| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,006 pcs
|
2006 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Current | |
| Industrial Grade | |
| Mounting Type | |
| Tape & Reel | |
| Type | |
| Voltage |

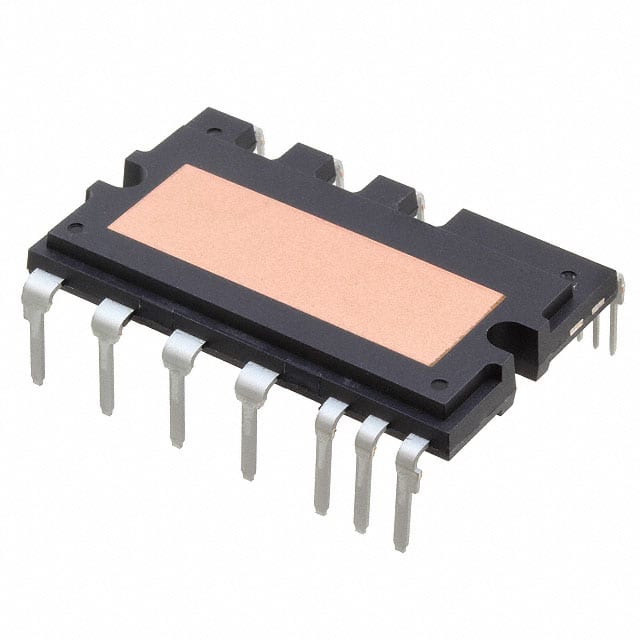

The FSBB10CH120D is a three-phase IGBT power driver module from onsemi, part of the SPM series. It integrates IGBT switching devices in a 3-phase configuration, supporting output currents up to 10 A. The module provides 2500 Vrms isolation between input and output for robust galvanic isolation in power conversion systems.
The device is housed in a 27-PowerDIP module package with through-hole mounting, enabling straightforward attachment to PCBs in industrial power stages. The PowerDIP outline provides a compact footprint while offering adequate thermal and electrical performance for moderate-power drives.
Typical applications for this module include three-phase motor drives, inverters, and power conversion equipment where IGBT-based switching and isolated driver operation are required. The module's configuration simplifies the design of inverter legs and reduces component count compared to discrete IGBT solutions.
| Qty | Low | High |
|---|---|---|
| 1+ | $25.20 | $25.20 |
| 10+ | $18.29 | $18.29 |
| 100+ | $17.57 | $17.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
27-PowerDIP Module (1.205", 30.60mm)
RoHS3 Compliant per existing product data.
10 A
3 Phase
IGBT
2500Vrms
Through Hole
