| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
220 pcs
|
220 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Current | |
| Lead Style | |
| Medical Grade | |
| Mounting Type | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage |

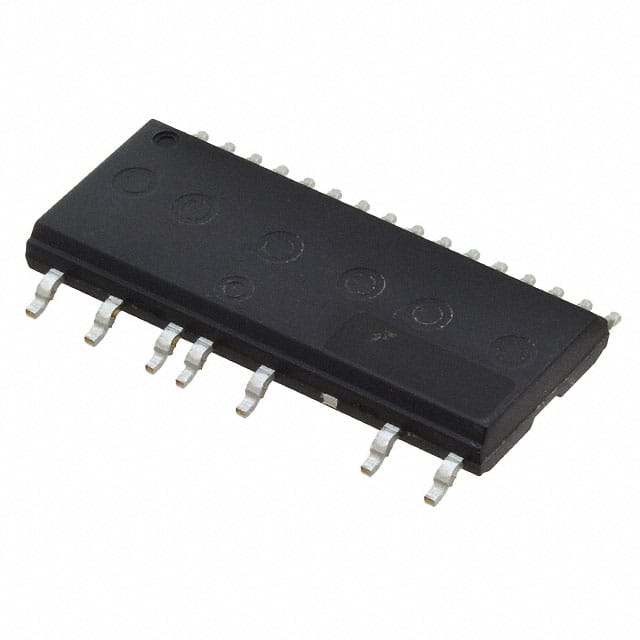

The FSB50825AS is a 3-Phase MOSFET power driver module from ON Semiconductor, part of the SPM (Smart Power Module) series. It integrates MOSFET technology in a 3-phase configuration, delivering a continuous output current of 3.6A. The module provides 1500Vrms isolation voltage, making it suitable for applications requiring galvanic isolation between control and power stages.
Designed for surface mount assembly, the FSB50825AS is housed in a 23-PowerSMD Module with Gull Wing leads. This package enables compact PCB layouts and efficient thermal management. The module is intended for motor drive and inverter applications where three-phase power control is needed.
The component is listed as RoHS3 compliant and REACH unaffected, with an MSL rating of 1 (unlimited floor life). These compliance claims are unverified and should be confirmed with the manufacturer for critical designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.90 | $13.90 |
| 10+ | $9.72 | $9.72 |
| 100+ | $7.69 | $7.69 |
| 450+ | $7.69 | $7.69 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The isolation voltage is 1500Vrms.
It comes in a 23-PowerSMD Module with Gull Wing leads.
It is listed as RoHS3 Compliant, but this is unverified.
The output current rating is 3.6A.
It uses a 3-phase configuration.
It is surface mount.
It uses MOSFET technology.
