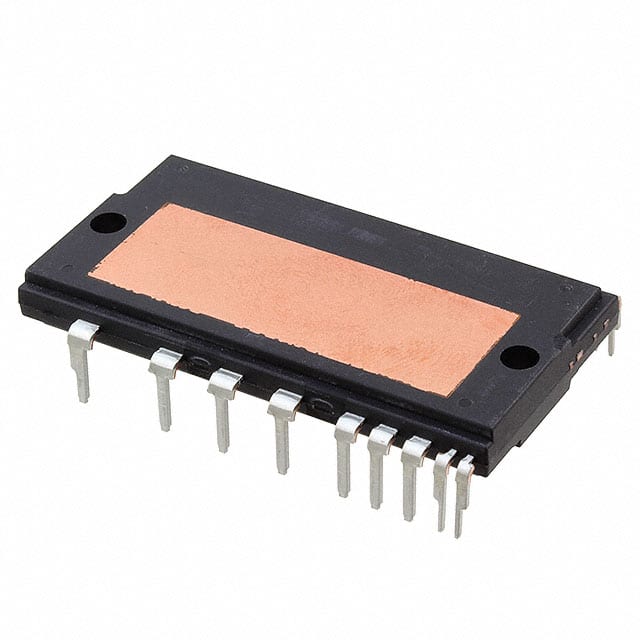

FSAM50SM60A FSAM50SM60A is an IGBT 3 Phase Inverter Module from ON Semiconductor. It features 600V collector-emitter breakdown voltage, 50A output current, and 2500Vrms isolation in a 32-PowerDIP through-hole package.
Mfr Part #:

FSAM50SM60A

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
FSAM50SM60A is an IGBT 3 Phase Inverter Module from ON Semiconductor. It features 600V collector-emitter breakdown voltage, 50A output current, and 2500Vrms isolation in a 32-PowerDIP through-hole package.
✓ Total Stock: 5,000 pcs
$ Price Range: $43.75

FSAM50SM60A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FSAM50SM60A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Configuration
Current
Industrial Grade
Medical Grade
Mounting Type
Tape & Reel
Type
Voltage
View Similar Products (0)

FSAM50SM60A Description

Short technical summary and product information.

The FSAM50SM60A is a power driver module from ON Semiconductor, designed as an IGBT 3 Phase Inverter. It provides a collector-emitter breakdown voltage of 600V and an output current rating of 50A. With an isolation voltage of 2500 Vrms, it ensures safe operation in high-voltage environments. The module is housed in a 32-PowerDIP (1.370", 34.80mm) through-hole package, suitable for automated assembly. This component is ideal for motor drives, UPS systems, and industrial inverters where reliable three-phase power conversion is required. The module's IGBT technology offers efficient switching and low conduction losses. While detailed thermal and saturation parameters are not provided in this basic data, the specifications indicate robust performance for standard inverter applications.

FSAM50SM60A Quick Information

Product Type: Power Driver Module
Series: Motion SPM 2
Canonical Name: FSAM50SM60A - IGBT 3 Phase Inverter Module, 600V, 50A, 32-PowerDIP
Subcategory: 3 Phase Inverter

FSAM50SM60A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

FSAM50SM60A Estimated Pricing

Qty Low High
48+ $43.75 $43.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

FSAM50SM60A Features

  • IGBT 3 Phase Inverter configuration.
  • Rated for 600V collector-emitter breakdown.
  • Supports 50A continuous output current.
  • Provides 2500Vrms isolation voltage.
  • Through-hole 32-PowerDIP package.

FSAM50SM60A Applications

  • Ideal for three-phase motor drives.
  • Used in uninterruptible power supplies.
  • Suitable for industrial inverter systems.
  • Applied in renewable energy inverters.

FSAM50SM60A FAQs

7 frequently asked questions generated from this part’s specifications.
What is the collector-emitter breakdown voltage of the FSAM50SM60A?

600V.

What package does the FSAM50SM60A come in?

32-PowerDIP Module (1.370", 34.80mm).

Is the FSAM50SM60A RoHS compliant?

RoHS3 Compliant (unverified).

What is the output current rating of the FSAM50SM60A?

50A.

What is the isolation voltage of the FSAM50SM60A?

2500 Vrms.

What is the mounting type of the FSAM50SM60A?

Through Hole.

What configuration is the FSAM50SM60A?

3 Phase Inverter.

FSAM50SM60A Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
FNB35060T
FNB35060T
On Semiconductor
The FNB35060T is a 600V, 50A 3-phase IGBT inverter power driver module from ON Semiconductor. It comes in a 27-PowerDIP through-hole package with 2500Vrms isolation.
