FSA551UCX The On Semiconductor FSA551UCX is a dual SPST audio switch designed for special purpose applications. It features a 240MHz bandwidth and operates from a 1.5V to 3V supply.
Mfr Part #:

FSA551UCX

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor FSA551UCX is a dual SPST audio switch designed for special purpose applications. It features a 240MHz bandwidth and operates from a 1.5V to 3V supply.
✓ Total Stock: 369,000 pcs

FSA551UCX Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
369,000 pcs
On Request
369000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FSA551UCX Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Bandwidth
Lead Spacing
Mounting Type
Multiplexer
Number of Channels
On
Operating Temperature
Supplier Device Package
Supplier Package
Supply Voltage
Switch Circuit
Voltage
View Similar Products (0)

FSA551UCX Description

Short technical summary and product information.

The FSA551UCX from On Semiconductor is a dual Single Pole Single Throw (SPST) analog switch designed for audio applications. This component offers a bandwidth of 240MHz and a low on-state resistance of up to 600mOhm.



Operating within a supply voltage range of 1.5V to 3V, the FSA551UCX is suitable for various portable and low-voltage systems. The device is specified for an operating temperature range of -40°C to 85°C.

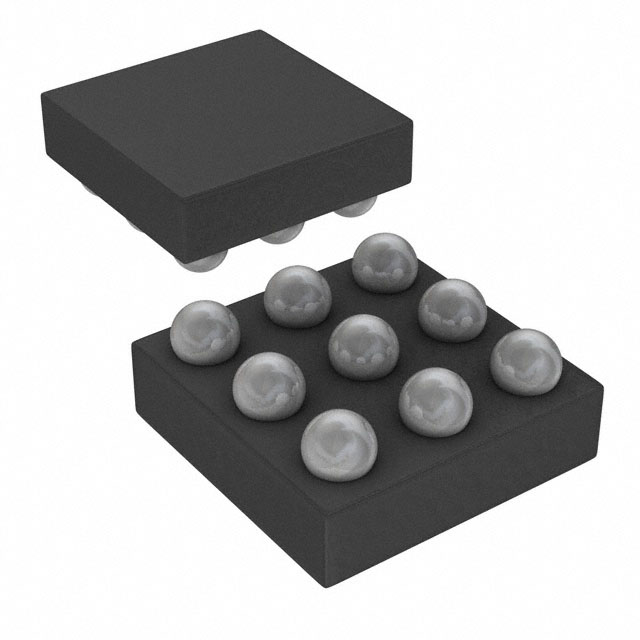

Packaged in a compact 9-WLCSP (Wafer Level Chip Scale Package) with dimensions of 1.22x1.22mm, it is designed for surface mounting. This small footprint makes it ideal for space-constrained designs.



The switch circuit is SPST, and it functions as a 1:1 multiplexer, allowing for efficient signal routing in audio paths.

FSA551UCX Quick Information

Product Type: Analog Switch
Canonical Name: FSA551UCX Dual SPST Audio Switch
Subcategory: Special Purpose

FSA551UCX Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FSA551UCX Features

  • Dual SPST audio switch.
  • 240MHz bandwidth for signal integrity.
  • Low 600mOhm maximum on-resistance.
  • Operates from 1.5V to 3V supply.
  • Compact 9-WLCSP surface mount package.

FSA551UCX Applications

  • Suitable for audio signal routing.
  • Ideal for portable electronic devices.
  • Used in low-voltage applications.
  • Space-constrained designs benefit from WLCSP.

FSA551UCX FAQs

7 frequently asked questions generated from this part’s specifications.
What is the on-state resistance of the FSA551UCX?

The maximum on-state resistance is 600 mOhm.

How many channels does the FSA551UCX support?

The FSA551UCX supports 2 channels.

What is the bandwidth of the FSA551UCX audio switch?

The bandwidth is 240 MHz.

What is the operating voltage range for the FSA551UCX?

The operating voltage range is 1.5V to 3V.

What is the operating temperature range for this analog switch?

The operating temperature range is -40°C to 85°C.

What type of switch circuit does the FSA551UCX use?

It uses an SPST switch circuit.

What is the package type for the FSA551UCX?

The package type is 9-WLCSP.
