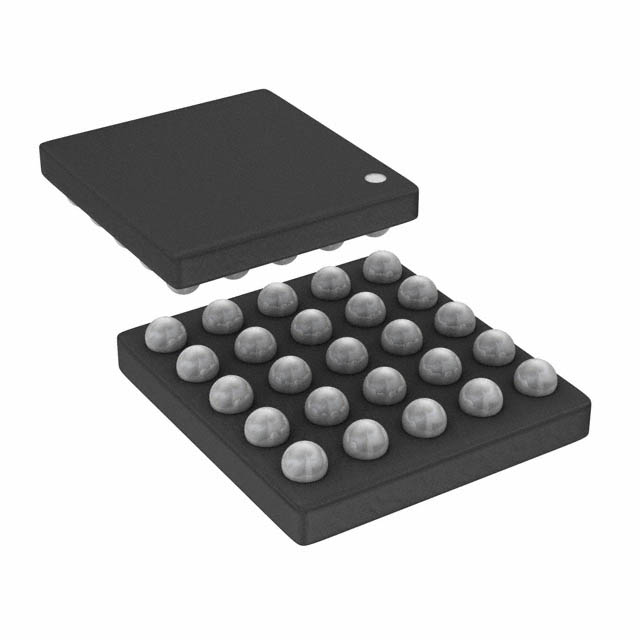

The FSA4480UCX from On Semiconductor is a versatile analog switch engineered for USB Type-C multimedia applications. It facilitates the sharing of a single USB Type-C port for USB 2.0 data, analog audio, and microphone signals.
Key electrical specifications include a power supply range of 2.7 V to 5.5 V and a high-speed USB 2.0 switch with a -3dB bandwidth of 950 MHz. The audio switch functionality provides a negative rail capability and a typical THD+N of -110 dB. It also features high voltage protection with 20 V DC tolerance on connector pins and an overvoltage protection threshold of 5 V typical.
This device supports OMTP and CTIA pinout configurations and includes an audio sense path. It is housed in a compact 25-ball WLCSP package measuring 2.24 mm x 2.28 mm, suitable for surface mount applications. The operating temperature range is -40°C to 85°C.
Applications for the FSA4480UCX include mobile phones, tablets, notebook PCs, and media players, where efficient port sharing and signal integrity are crucial.
The operating voltage range is 2.7 V to 5.5 V.
The -3dB bandwidth for the USB High Speed switch is 950 MHz.
The typical on-resistance for the audio switch is 1 Ohm.
The operating temperature range is -40°C to 85°C.
The FSA4480UCX is available in a 25-WLCSP (Wafer Level Chip Scale Package) and a 25-UFBGA.
