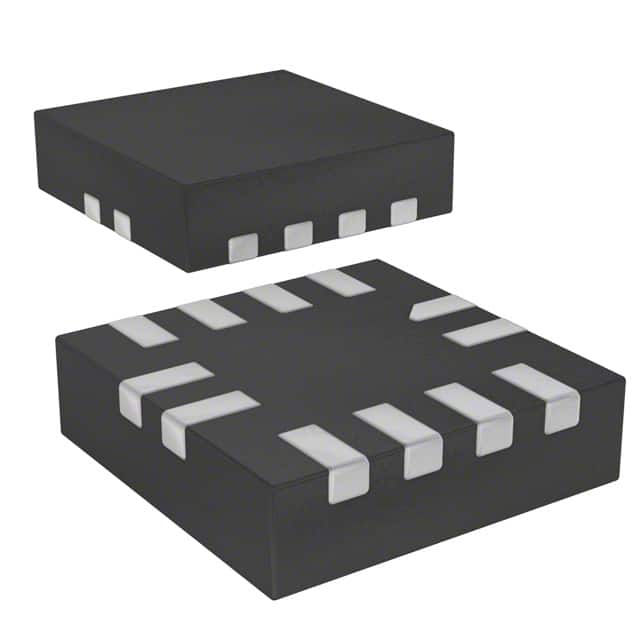

FSA2275UMX The On Semiconductor FSA2275UMX is a dual DPDT analog switch designed for special purpose applications. It operates within a voltage range of 2.5V to 5.5V.
Mfr Part #:

FSA2275UMX

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor FSA2275UMX is a dual DPDT analog switch designed for special purpose applications. It operates within a voltage range of 2.5V to 5.5V.
✓ Total Stock: 81,638 pcs

FSA2275UMX Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
69,538 pcs
On Request
69538 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
12,100 pcs
On Request
12100 pcs On Request 1 On Request On Request 16+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FSA2275UMX Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Bandwidth
Features
Lead Spacing
Mounting Type
Multiplexer
Number of Channels
On
Operating Temperature
Supplier Device Package
Supplier Package
Switch Circuit
Voltage
View Similar Products (0)

FSA2275UMX Description

Short technical summary and product information.

The FSA2275UMX is an integrated circuit switch manufactured by On Semiconductor. It is a dual-pole double-throw (DPDT) analog switch suitable for audio and other signal switching applications. The device features a bandwidth of 230 MHz and an on resistance of 1 Ohm, ensuring low signal distortion and high fidelity. It operates within a voltage range of 2.5V to 5.5V and can withstand temperatures from -40°C to 85°C, making it suitable for various environmental conditions.



The switch employs a break-before-make feature, preventing short circuits during switching transitions. It is packaged in a 12-UFQFN package with a 12-UMLP (1.8x1.8 mm) footprint, designed for surface mounting on printed circuit boards. The device is compliant with RoHS standards and is intended for use in audio signal routing, switching, and multiplexing in consumer electronics, communication equipment, and industrial systems.

FSA2275UMX Quick Information

Product Type: Analog Switch
Canonical Name: FSA2275UMX Dual DPDT Analog Switch
Subcategory: Special Purpose

FSA2275UMX Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FSA2275UMX Features

  • Dual DPDT switch with break-before-make
  • Operates from 2.5V to 5.5V
  • 230 MHz bandwidth for high-speed switching
  • Surface mount 12-UFQFN package
  • Low 1 Ohm on resistance

FSA2275UMX Applications

  • Ideal for audio signal switching
  • Used in multiplexing applications
  • Suitable for consumer electronics
  • Applicable in communication equipment

FSA2275UMX FAQs

3 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the FSA2275UMX?

The FSA2275UMX operates within a voltage range of 2.5V to 5.5V.

What package type does the FSA2275UMX come in?

The FSA2275UMX is packaged in a 12-UFQFN package with a 12-UMLP (1.8x1.8 mm) footprint.

What is the operating temperature range for the FSA2275UMX?

The device operates from -40°C to 85°C.
