| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage |

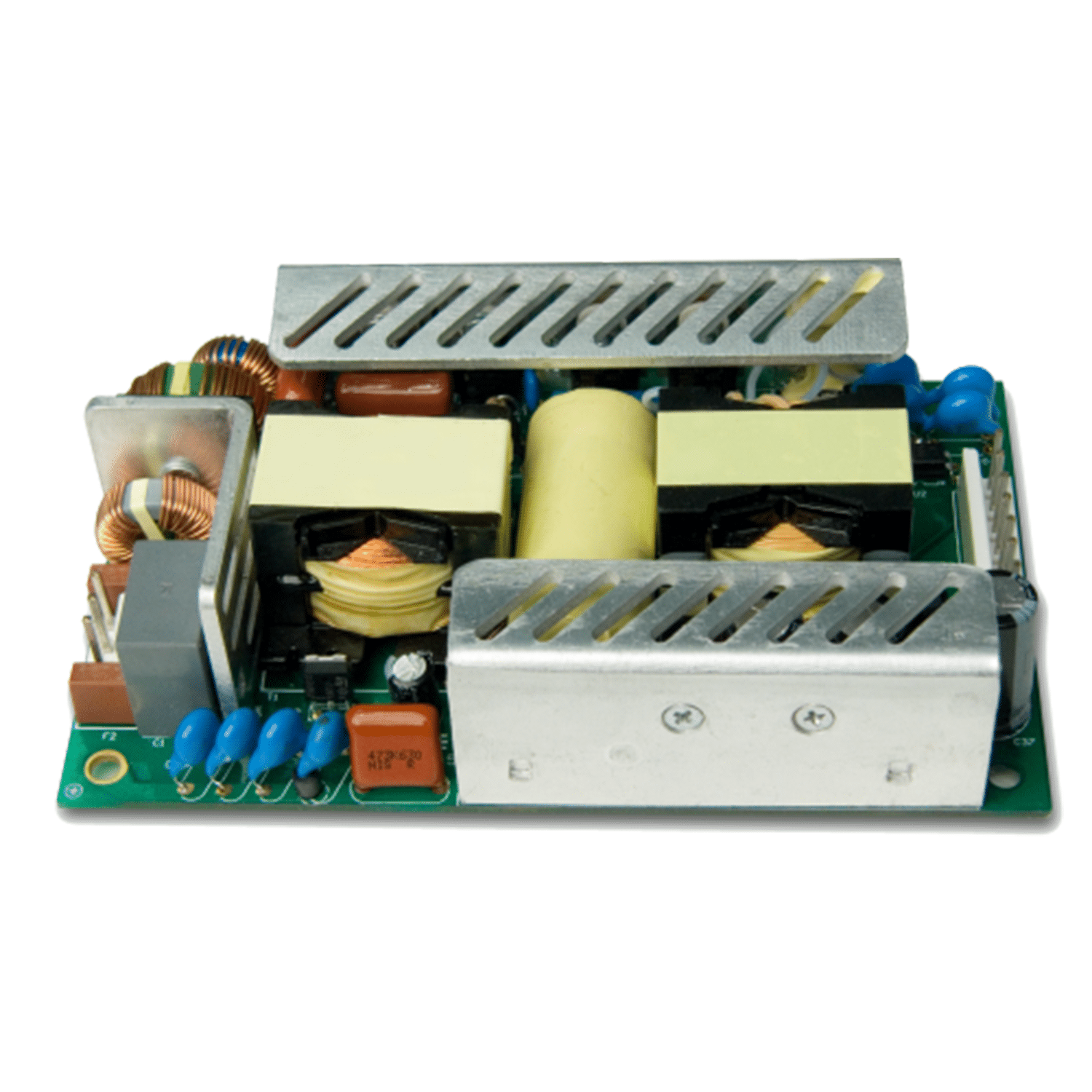

The Inventus Power FSA150012A is a Class I, 150 Watt ITE Open Frame AC-DC Power Supply. It operates with a universal input voltage range of 85 to 264 VAC and provides a single output of 12V at 12.5A.
This power supply boasts an efficiency of 91% and is designed for ITE (Commercial) applications. Its open frame form factor and chassis mount type make it suitable for internal integration into various systems. The operating temperature range is from 0°C to 70°C.
Key specifications include a power output of 150W (180W forced air), dimensions of 127.0mm x 76.2mm x 30.9mm, and features like universal input. It is approved by CB and CE agencies.
The input voltage range is 85 to 264 VAC.
The output is 12V at 12.5A.
The operating temperature range is 0°C to 70°C.
The typical efficiency is 91%.
It is an open frame chassis mount design.
It is approved to CB and CE standards.
The continuous power rating is 150W, with 180W available with forced air cooling.
