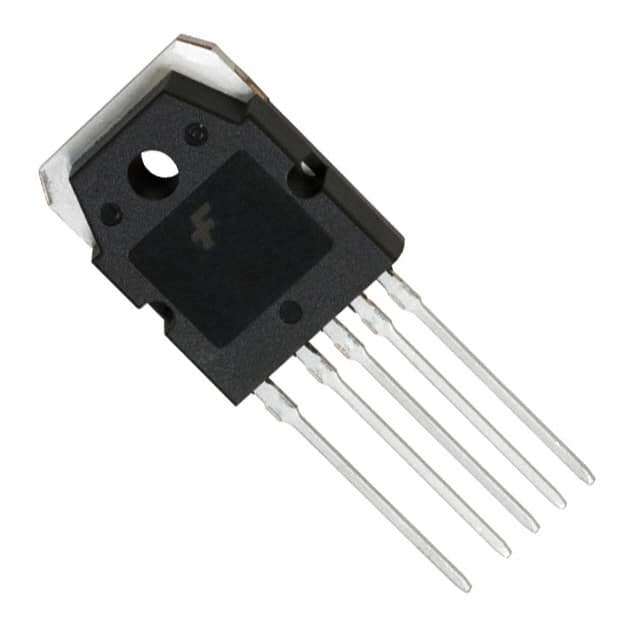

FS7M0880TU The FS7M0880TU from On Semiconductor is an offline switch IC designed for SMPS applications. It features a high voltage SenseFET and PWM controller in a TO-3P-5L package.
Mfr Part #:

FS7M0880TU

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
The FS7M0880TU from On Semiconductor is an offline switch IC designed for SMPS applications. It features a high voltage SenseFET and PWM controller in a TO-3P-5L package.
✓ Total Stock: 3,120 pcs
$ Price Range: $0.75

FS7M0880TU Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
2,700 pcs
On Request
2700 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
420 pcs
On Request
420 pcs On Request 1 On Request On Request 13+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FS7M0880TU Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Control Features
Duty Cycle
Fault Protection
Frequency
Internal Switch(s)
Mounting Type
Operating Temperature
Output Isolation
Storage Temperature
Supplier Device Package
Topology
Voltage
View Similar Products (0)

FS7M0880TU Description

Short technical summary and product information.

The FS7M0880TU is an offline switch IC from On Semiconductor, part of the Fairchild Power Switch (FPS) family. It is designed for off-line Switch Mode Power Supplies (SMPS) requiring minimal external components.



Key electrical specifications include a Drain-Source Breakdown Voltage of 800V, a continuous drain current of up to 8.0A at 25°C, and an operating frequency of 66kHz. The device integrates a high voltage SenseFET and a current mode PWM controller. It offers features such as Pulse By Pulse Over Current Limiting, Over Load Protection, Over Voltage Protection (min. 25V), and an Internal Thermal Shutdown Function.



The controller includes an integrated fixed oscillator, under-voltage lockout, leading edge blanking, optimized gate drivers, and a soft start function. The FS7M0880TU supports both flyback and forward converter topologies and operates within a voltage range of 9V to 30V.



Packaged in a TO-3P-5L, this component is designed for through-hole mounting. Its robust protection features and integrated design contribute to increased efficiency, productivity, and system reliability in cost-down designs.

FS7M0880TU Quick Information

Product Type: Offline Switch IC
Canonical Name: FS7M0880TU Offline Switch IC
Subcategory: Offline Switches

FS7M0880TU Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FS7M0880TU Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

FS7M0880TU Features

  • 800V Drain-Source Breakdown Voltage.
  • Integrated high voltage SenseFET.
  • 66kHz fixed operating frequency.
  • Overload and over-voltage protection.
  • TO-3P-5L package for through-hole mounting.

FS7M0880TU Applications

  • Designed for off-line SMPS.
  • Suitable for flyback converters.
  • Suitable for forward converters.
  • Minimal external component count.

FS7M0880TU FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the FS7M0880TU?

The operating voltage range for the FS7M0880TU is 9V to 30V.

What package type is the FS7M0880TU available in?

The FS7M0880TU is available in a TO-3P-5L package.

What is the operating temperature range for this component?

The operating temperature range is -25°C to 85°C (TA).

Is the FS7M0880TU RoHS compliant?

Yes, the FS7M0880TU is RoHS3 Compliant.

What is the breakdown voltage of the FS7M0880TU?

The Drain-Source Breakdown Voltage is 800V.

What is the operating frequency of the FS7M0880TU?

The operating frequency is 66kHz.

What fault protection features are included in the FS7M0880TU?

It includes Current Limiting, Over Load, Over Temperature, and Over Voltage protection.
