| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channel Type | |
| Configuration | |
| Height | |
| Length | |
| Width |

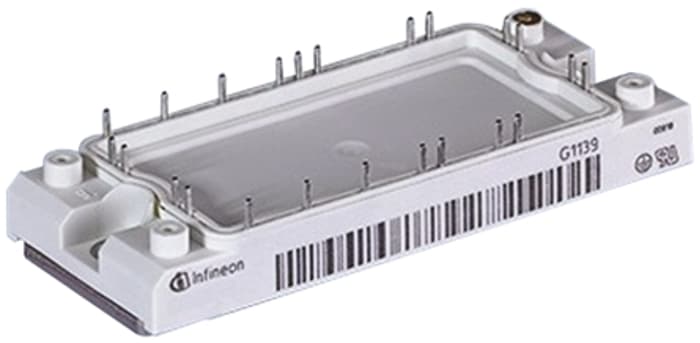

The Infineon FS75R12KT4B15BOSA1 is a high-performance N-Channel IGBT module designed for 3-phase bridge applications. It features a robust design with a maximum continuous collector current of 75A and a high collector-emitter voltage rating of 1200V.
This module utilizes the ECONO2 package, suitable for PCB mounting, and offers a pin count of 28. It operates within a wide temperature range, from -40°C to 150°C, making it suitable for demanding environments. The IGBT technology provides efficient switching characteristics.
Infineon's IGBT modules, including this FS75R12KT4B15BOSA1, are known for their low switching losses, enabling efficient operation in applications such as inverters, UPS systems, and industrial drives. The N-Channel TRENCHSTOP and Fieldstop IGBTs are designed for both hard and soft switching applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum continuous collector current is 75A.
The maximum collector-emitter voltage is 1200V.
The operating temperature range is from -40°C to 150°C.
This IGBT module uses the ECONO2 package.
This IGBT module is designed for PCB mounting.
