| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Tap | |
| Current | |
| Height | |
| Lead Spacing | |
| Mounting Type | |
| Power | |
| Primary Winding(s) | |
| Secondary Winding(s) | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Rise | |
| Termination Style | |
| Type | |
| Voltage | |
| Weight |

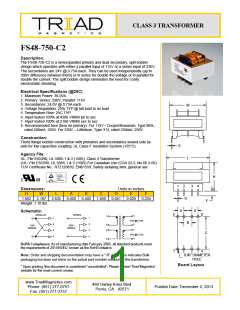

The Triad Magnetics FS48-750 is a split bobbin power transformer with a laminated core, rated for 36VA of power. It offers flexibility with dual primary windings that can be configured for either 115V or 230V input. The transformer provides dual secondary windings, each capable of delivering 24V at 0.75A. These secondaries can be used independently or connected in series for double the voltage or in parallel for double the current.
The split bobbin design enhances safety and reduces capacitive coupling without the need for electrostatic shielding. This unit is designed for through-hole mounting and features PC pin termination.
Electrical specifications include a typical voltage regulation of 25% from full load to no load and a typical temperature rise of 25°C. The transformer has undergone 100% Hipot testing at 4200 VRMS from primary to secondary and 2160 VRMS from secondary to secondary. It utilizes a UL Class F insulation system (155°C).
Dimensions are 66.68mm L x 55.55mm W with a height of 39.67mm. The weight is 1.1 lbs (499 g).
| Qty | Low | High |
|---|---|---|
| 1+ | $3.00 | $3.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The FS48-750 transformer has a power rating of 36VA.
The primary windings can be configured for 115V or 230V, and the dual secondary windings each provide 24V.
Each secondary winding on the FS48-750 is rated for 0.75A.
The FS48-750 transformer is designed for through-hole mounting.
The FS48-750 utilizes a UL Class F insulation system, rated for 155°C.
