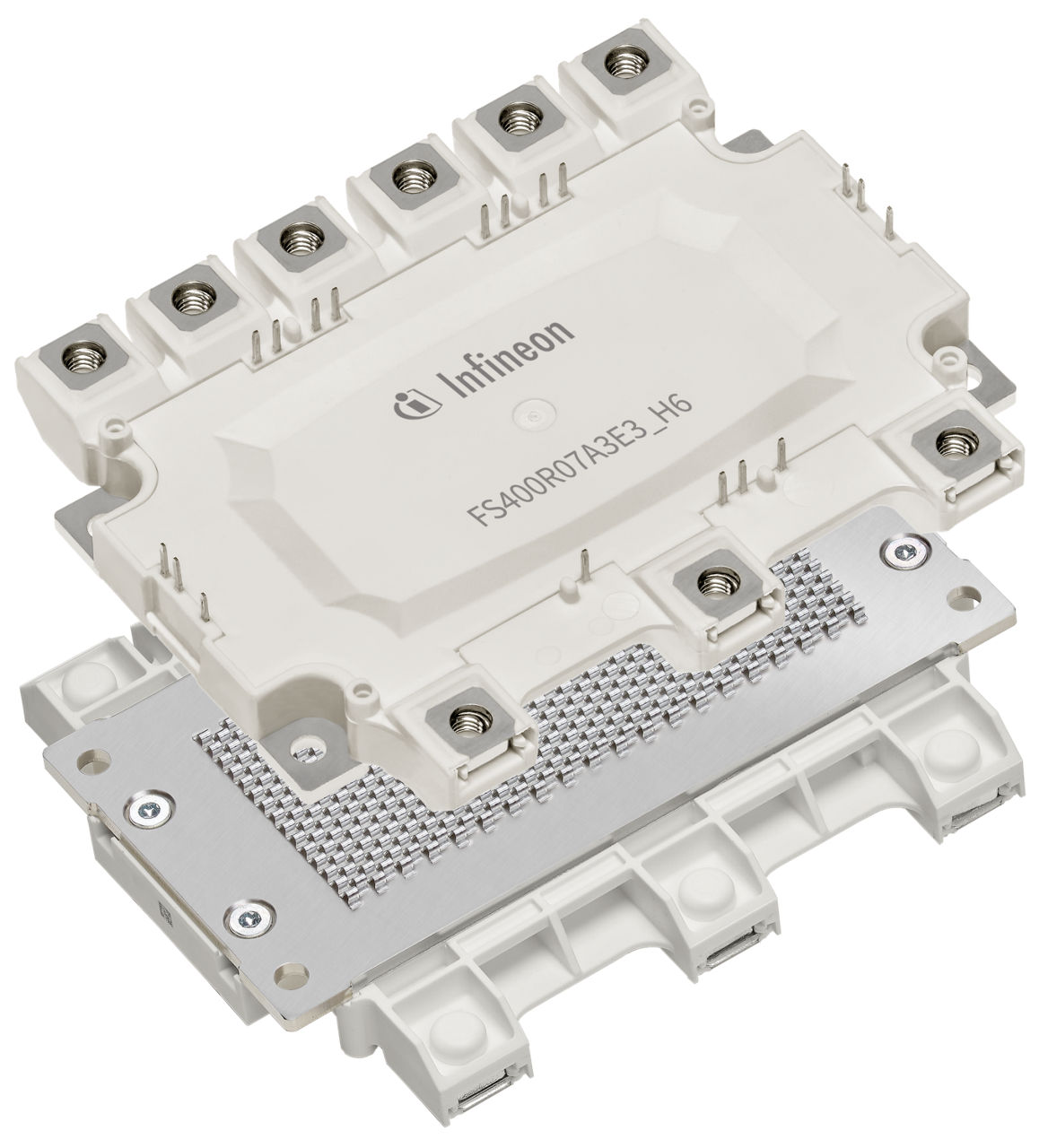

The Infineon FS400R07A3E3 is a HybridPACK DC6 power module designed for automotive applications, particularly in (Hybrid) Electric Vehicles (H)EV and motor drives. It utilizes Trench/Fieldstop IGBT3 technology with emitter controlled diodes and an integrated NTC temperature sensor.
This module offers a Collector-Emitter Voltage (Vces) of 700V and a nominal Continuous Collector Current (Ic nom) of 400A, with a pulsed current capability (Icrm) of 800A. It is designed for a junction operating temperature of 150°C, with a short-time extended operation capability up to 175°C. The module provides 2.5 kV AC insulation and features an Al2O3 substrate for low thermal resistance.
Optimized for automotive applications with DC link voltages up to 450V, the FS400R07A3E3 is suitable for air or liquid cooling. Its construction includes a copper base plate and high-performance ceramic substrate, ensuring high thermal and power cycling capability. The power connections are made via screw terminals, and the driver stage PCB can be soldered directly onto the module for a compact design.
| Qty | Low | High |
|---|---|---|
| 1+ | $103.07 | $103.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector-emitter voltage (Vces) is 700 V.
The nominal continuous collector current (Ic nom) is 400 A.
The typical junction operating temperature (T vj,op) is 150°C.
An NTC temperature sensor is integrated into the module.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
Yes, the REACH status is REACH Unaffected.
