| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With | |
| Operating Temperature | |
| Storage Temperature | |
| Weight |

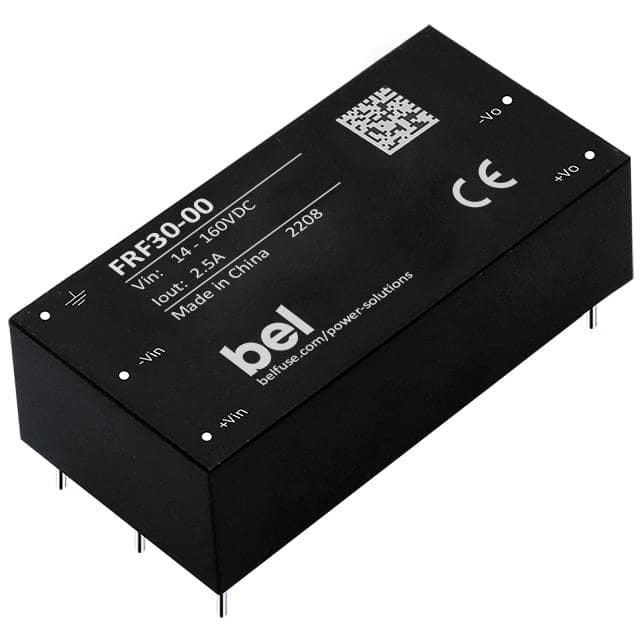

The Bel Power Solutions FRF30-00 is an input filter specifically designed for board-level DC-DC converter applications. Its primary function is to minimize conducted and radiated emissions generated by switch-mode DC-DC converters, helping designs meet stringent EMC requirements.
This filter features an ultra-wide input voltage range of 14 to 160 VDC and a maximum operating current of 2.5 A. It operates reliably within an ambient temperature range of -40 °C to +105 °C. The FRF30-00 is designed to meet various industry standards, including IEC/EN 61000-4 series, CISPR16 / EN 55032, and railway standards EN 50155 / EN 50121-3-2 and AREMA.
Key features include its small footprint and compliance with the latest revision of the safety standard IEC 62368-1. The filter is housed in a black plastic case that is flame-retardant and heat-resistant (UL94 V-0). Its dimensions are 50.80 x 20.40 x 15.16 mm, with a typical weight of 29 g.
Applications for the FRF30-00 include railway-related equipment where robust EMC performance is critical. The filter aids in controlling electromagnetic interference, ensuring stable operation in demanding environments.
The FRF30-00 has an input voltage range of 14 to 160 VDC.
The maximum operating current for the FRF30-00 is 2.5 A.
The FRF30-00 operates in an ambient temperature range of -40 °C to 105 °C.
Yes, the FRF30-00 is listed as RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the FRF30-00 is 1 Unlimited.
The dimensions of the FRF30-00 are 50.80 x 20.40 x 15.16 mm.
