| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
47 pcs
|
47 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Fastening Type | |
| Ingress Protection | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Rated Current | |
| Row Spacing | |
| SVHC Present | |
| Style | |
| Tape & Reel | |
| Termination | |
| Tolerance |

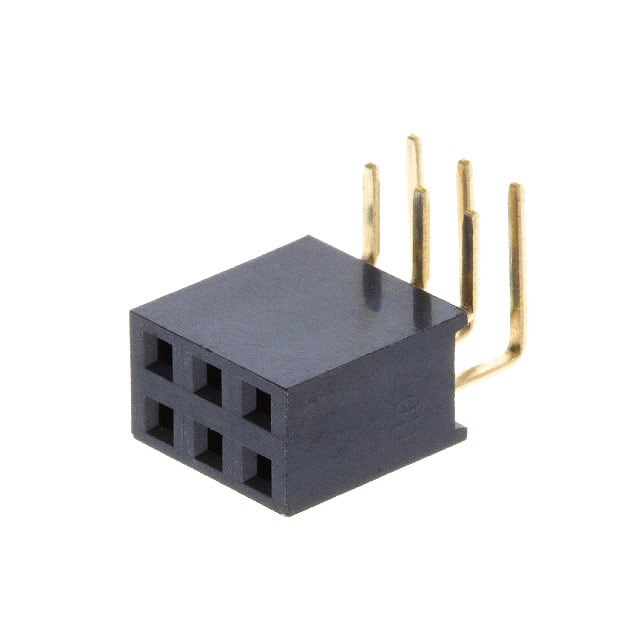

The METZ CONNECT FR20203HBDN is a 6 position dual row female socket receptacle designed for board-to-board applications. It features a 2.54mm pitch and a through hole right angle mounting style with solder termination. The connector has a push-pull fastening type and is rated for 3A of current. It operates over a temperature range of -40°C to 105°C.
The receptacle is constructed with a black PE-HT insulating material and CuZn contacts with a Ni + Au flash contact surface. The mating contact length is 2.90mm and the solder pin length is a minimum of 3mm. The connector has closed ends and a 90° direction of connection.
This component is suitable for use in various electronic assemblies requiring a reliable board-to-board connection. It is packaged in tape and reel and is reflow solderable. The part is part of the FR202xxHBDN series from METZ CONNECT.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.57 | $0.57 |
| 10+ | $0.48 | $0.48 |
| 250+ | $0.37 | $0.37 |
| 1,000+ | $0.35 | $0.35 |
| 2,500+ | $0.34 | $0.34 |
| 5,000+ | $0.32 | $0.32 |
| 10,000+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The FR20203HBDN has 6 positions arranged in 2 rows.
The pitch is 2.54mm (0.100").
The rated current is 3 A.
The mounting type is Through Hole, Right Angle with solder termination.
The operating temperature range is -40°C to 105°C.
The contact finish is Gold (Flash) with a Ni + Au surface.
The insulation material is PE-HT (black).
