| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
240 pcs
|
240 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Dimensions | |
| Failure Rate | |
| LED Color | |
| Lens Color | |
| SVHC Present |

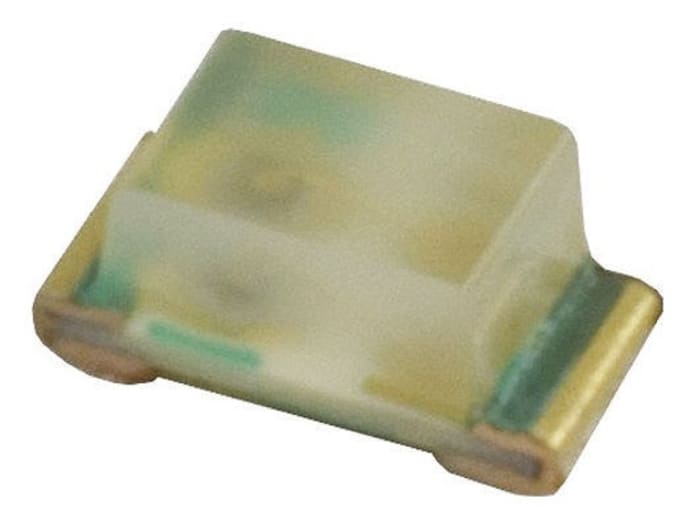

This Stanley Electric FR1111C-TR is a red light-emitting diode (LED) designed for discrete indication applications. It features a 0603 package size suitable for surface mounting.
The LED operates with a typical forward voltage of 1.9V and can handle a maximum forward current of 30mA. Its luminosity is rated at 50 mcd with a dominant wavelength of 626nm, providing a clear red light output. The viewing angle is broad, ranging from 140 to 150 degrees.
Constructed with a diffused clear lens in a rectangular shape, this component is part of the Stanley Electric 1111C series. The LED has dimensions of 1.6 x 0.8 x 0.7 mm and is supplied on a reel. Ideal applications include communication machines and electrical household appliances where reliable visual indication is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.07 | $0.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The FR1111C-TR comes in a 0603 surface mount package.
The typical forward voltage is 1.9V.
The maximum forward current is 30mA.
The typical luminous intensity is 50 mcd.
The viewing angle is 140° typical.
The lens is rectangular, clear, and diffused.
The series is 1111C.
