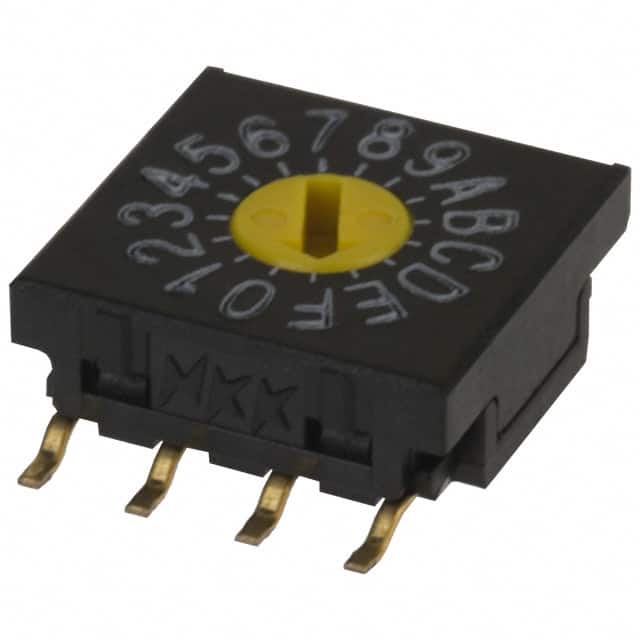

The NKK Switches FR02FC16P-R is part of the FR02 Series of 10mm ultra-thin SMT DIP rotary switches. This model offers a hexadecimal complement circuit with 16 positions, designed for precise code setting.
Key electrical specifications include a switching rating of 100mA at 5V DC and a nonswitching rating of 100mA at 50V DC. The contact resistance is a maximum of 100 milliohms for the circuit and 30 milliohms for the contact point. Insulation resistance is a minimum of 1,000 megohms at 250V DC.
Constructed with a glass fiber reinforced polyamide (UL94V-0) actuator, housing, and base, this switch is rated for an operating temperature range of -25°C to 85°C. The contact material is copper alloy with gold plating, and the termination style is Gull Wing for surface mounting.
Mechanical life and electrical life are both rated for a minimum of 10,000 detent operations. The ultra-thin body allows for close stacking of PC boards. This switch is not process sealed and requires hand cleaning with an alcohol-based solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -25°C to 85°C.
The switching rating is 100mA at 5V DC.
It uses Gull Wing termination for surface mounting.
The actuator, housing, and base are made of glass fiber reinforced polyamide (UL94V-0).
The mechanical and electrical life is a minimum of 10,000 detent operations.
