Mfr Part #:

FR02C023JA1-R5000

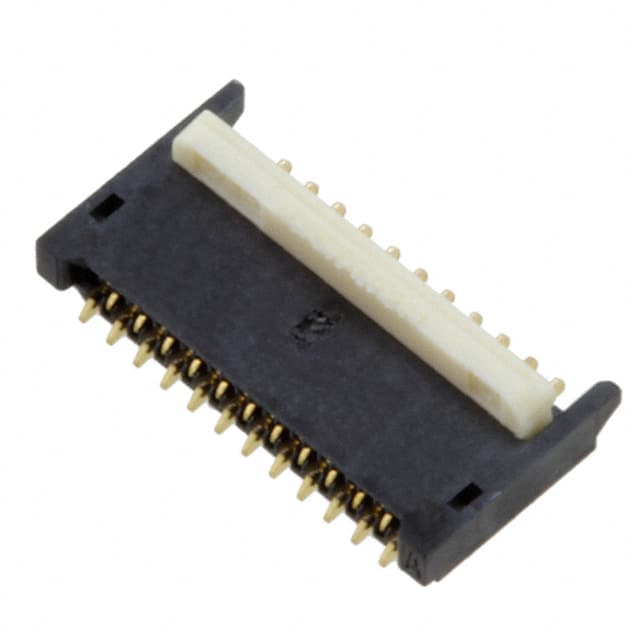

Name: FR02C023JA1-R5000
Brand: JAE Electronics
SKU: FR02C023JA1-R5000

Mfr Name: JAE Electronics

Description:

CONN FPC 23POS 0.2MM R/A

Stock on Request

FR02C023JA1-R5000 Description

Short technical summary and product information.

CONN FPC 23POS 0.2MM R/A

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Name	JAE Electronics
Actuator Material	Plastic
Cable End Type	Tabbed or Tapered
Connector	Contacts, Top and Bottom
Contact Finish	Gold
Contact Material	Phosphor Bronze
FFC, FCB Thickness	0.20mm
Features	Low Insertion Force (LIF)
Flat Flex Type	FPC
Height Above Board	0.032" (0.81mm)
Housing Material	Plastic
Locking Feature	Flip Lock, Backlock
Mounting Type	Surface Mount, Right Angle
Number of Positions	23
Operating Temperature	-40°C ~ 85°C
Pitch	0.008" (0.20mm)
Termination	Solder
Voltage Rating	50V
