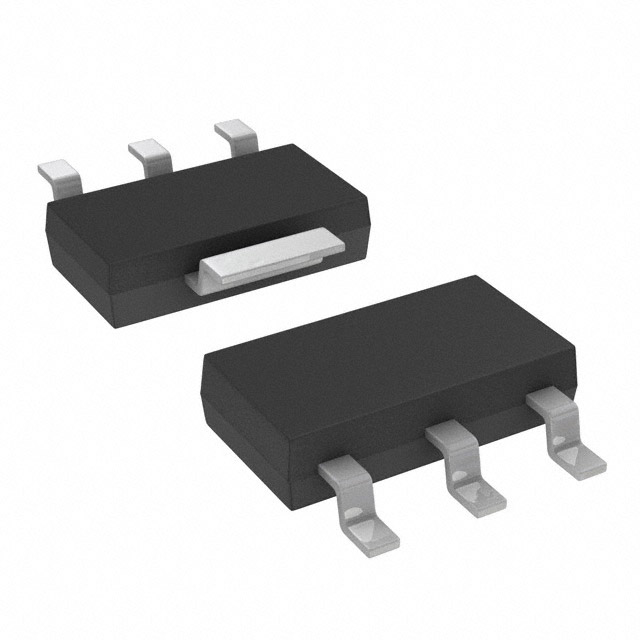

FQT4N20LTF The FQT4N20LTF is an N-Channel MOSFET from onsemi rated for 200V drain-source voltage and 850mA drain current. It features a maximum on-resistance of 1.35 Ohm and comes in a surface-mount SOT-223-4 package.
Mfr Part #:

FQT4N20LTF

Available from 3 distributors
Mfr Name: On Semiconductor
On Semiconductor
The FQT4N20LTF is an N-Channel MOSFET from onsemi rated for 200V drain-source voltage and 850mA drain current. It features a maximum on-resistance of 1.35 Ohm and comes in a surface-mount SOT-223-4 package.
✓ Total Stock: 329,965 pcs

FQT4N20LTF Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
301,000 pcs
On Request
301000 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
23,945 pcs
On Request
23945 pcs On Request 1 On Request On Request 11+ On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
5,020 pcs
On Request
5020 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FQT4N20LTF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Medical Grade
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

FQT4N20LTF Description

Short technical summary and product information.

The FQT4N20LTF is an N-Channel enhancement-mode MOSFET manufactured by onsemi (formerly Fairchild Semiconductor). It is designed for switching and amplification applications requiring a 200V drain-to-source voltage rating and a continuous drain current of 850mA at case temperature. The device uses metal-oxide semiconductor technology and supports gate drive voltages of 5V and 10V for achieving the specified on-resistance.



Key electrical characteristics include a maximum on-resistance of 1.35 Ohm at a drain current of 425mA and gate-source voltage of 10V, a maximum gate threshold voltage of 2V at 250µA drain current, and a maximum gate charge of 5.2nC at 5V gate-source voltage. The input capacitance is rated at a maximum of 310pF at 25V drain-source voltage. The device can dissipate up to 2.2W at case temperature and operates over a junction temperature range of -55°C to 150°C.



The FQT4N20LTF is housed in a TO-261-4 (TO-261AA) package with a supplier device package designation of SOT-223-4, suitable for surface-mount assembly. The maximum gate-source voltage rating is ±20V. This component is RoHS3 compliant and REACH unaffected, with a moisture sensitivity level of 1 (unlimited).

FQT4N20LTF Quick Information

Product Type: MOSFET
Series: QFET
Canonical Name: N-Channel MOSFET, 200V, 850mA, SOT-223-4
Subcategory: Single N-Channel MOSFET

FQT4N20LTF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FQT4N20LTF Features

  • 200V maximum drain-source voltage rating.
  • 850mA maximum drain current at case temperature.
  • 1.35 Ohm maximum on-resistance at 10V gate drive.
  • Surface-mount SOT-223-4 package for compact designs.
  • RoHS3 compliant and REACH unaffected.

FQT4N20LTF Applications

  • Used in low-power DC-DC converter circuits.
  • Suitable for load switching in portable devices.
  • Ideal for power management in consumer electronics.
  • Used in motor control and driver circuits.

FQT4N20LTF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-to-source voltage of the FQT4N20LTF?

The maximum drain-to-source voltage is 200V.

What is the maximum drain current of the FQT4N20LTF?

The maximum drain current is 850mA at case temperature.

What is the on-resistance of the FQT4N20LTF?

The maximum on-resistance is 1.35 Ohm at a drain current of 425mA and gate-source voltage of 10V.

What package is the FQT4N20LTF available in?

The FQT4N20LTF is available in a TO-261-4 (TO-261AA) package with a supplier device package of SOT-223-4, for surface-mount mounting.

What is the operating temperature range of the FQT4N20LTF?

The operating junction temperature range is -55°C to 150°C.

Is the FQT4N20LTF RoHS compliant?

Yes, the FQT4N20LTF is RoHS3 compliant.

What is the maximum gate threshold voltage of the FQT4N20LTF?

The maximum gate threshold voltage is 2V at a drain current of 250µA.
