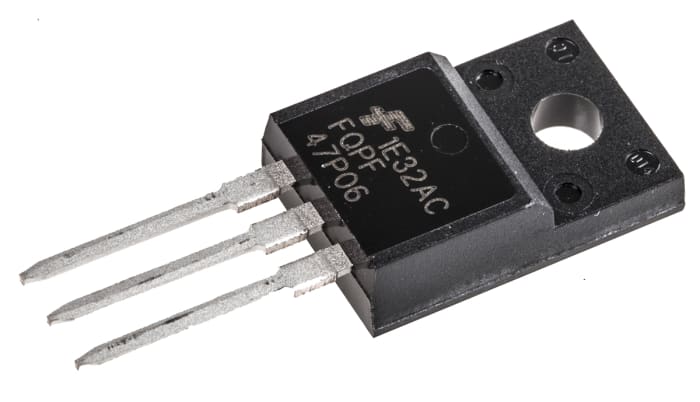

FQPF47P06 The FQPF47P06 is a P-Channel QFET MOSFET from onsemi, rated for -60V and -30A with a low on-resistance of 26mOhm. It comes in a TO-220F-3 through-hole package.
Mfr Part #:

FQPF47P06

Available from 3 distributors
Mfr Name: On Semiconductor
On Semiconductor
The FQPF47P06 is a P-Channel QFET MOSFET from onsemi, rated for -60V and -30A with a low on-resistance of 26mOhm. It comes in a TO-220F-3 through-hole package.
✓ Total Stock: 6,877 pcs

FQPF47P06 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
3,314 pcs
On Request
3314 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,020 pcs
On Request
2020 pcs On Request 1 On Request On Request On Request On Request On Request
Flip Electronics ✓
Non-Authorised Inventory information
1,543 pcs
On Request
1543 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FQPF47P06 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
SVHC Present
Supplier Device Package
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

FQPF47P06 Description

Short technical summary and product information.

The FQPF47P06 is a P-Channel enhancement mode power MOSFET manufactured using onsemi's proprietary planar stripe and DMOS technology. It is designed to reduce on-state resistance and provide superior switching performance and high avalanche energy strength. Key electrical specifications include a drain-source voltage of -60V, continuous drain current of -30A at 25°C case temperature, and a maximum on-resistance of 26mOhm at Vgs=-10V. The device features a typical gate charge of 84nC and input capacitance of 3600pF, enabling efficient switching. It is 100% avalanche tested with a single pulse avalanche energy rating of 820mJ. The MOSFET is housed in a TO-220-3 Full Pack (TO-220F-3) through-hole package, suitable for mounting on heatsinks. The operating junction temperature range is -55°C to 175°C, with a maximum power dissipation of 62W. Typical applications include switched mode power supplies, audio amplifiers, DC motor control, and variable switching power supplies.

FQPF47P06 Quick Information

Product Type: P-Channel MOSFET
Canonical Name: FQPF47P06 P-Channel MOSFET, -60V, -30A, 26mOhm, TO-220F-3
Subcategory: Single MOSFET

FQPF47P06 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FQPF47P06 Features

  • P-Channel QFET MOSFET technology.
  • Rated for -60V drain-source voltage.
  • Continuous drain current of -30A.
  • Low on-resistance of 26mOhm at 10V.
  • 100% avalanche tested for reliability.

FQPF47P06 Applications

  • Used in switched mode power supplies.
  • Ideal for audio amplifier circuits.
  • Suitable for DC motor control.
  • For variable switching power applications.

FQPF47P06 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the FQPF47P06?

-55°C to 175°C (junction temperature)

What package does the FQPF47P06 come in?

TO-220-3 Full Pack (also known as TO-220F-3), through-hole mounting

Is the FQPF47P06 RoHS compliant?

It is listed as RoHS3 Compliant, but this is unverified and should be confirmed with the manufacturer.

What is the drain-source breakdown voltage?

-60V

What is the continuous drain current rating?

-30A at 25°C case temperature

What is the typical gate charge?

84 nC typical

What is the single pulse avalanche energy rating?

820 mJ
