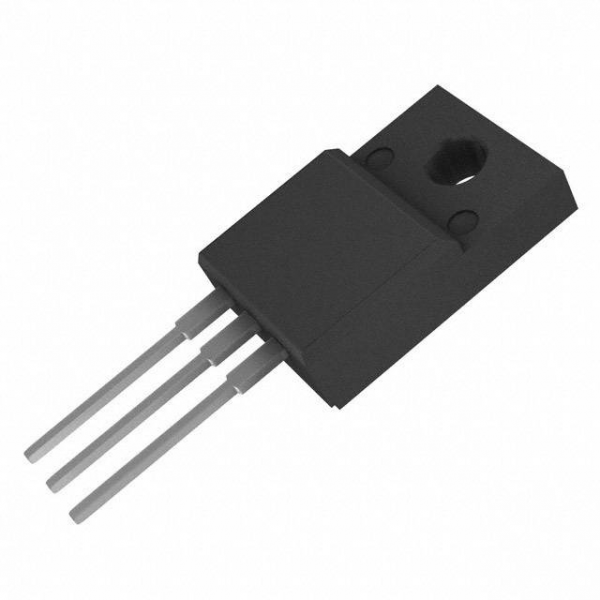

FQPF13N50CF N-Channel enhancement mode power MOSFET rated at 500V and 13A continuous drain current. Features low on-state resistance and high avalanche energy strength.
Mfr Part #:

FQPF13N50CF

Available from 4 distributors
Mfr Name: On Semiconductor
On Semiconductor
N-Channel enhancement mode power MOSFET rated at 500V and 13A continuous drain current. Features low on-state resistance and high avalanche energy strength.
✓ Total Stock: 10,172 pcs

FQPF13N50CF Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FQPF13N50CF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

FQPF13N50CF Description

Short technical summary and product information.

The FQPF13N50CF is an N-Channel enhancement mode power MOSFET manufactured by On Semiconductor using proprietary planar stripe and DMOS technology. This device is designed to deliver low on-state resistance and superior switching performance, making it suitable for power conversion applications.



Key electrical ratings include a drain-source voltage of 500V, continuous drain current of 13A at 25°C (8A at 100°C), and a maximum drain-source on-state resistance of 540mΩ at VGS=10V and ID=6.5A. The device features a low typical gate charge of 43nC and low reverse transfer capacitance of 20pF, contributing to efficient switching. It is 100% avalanche tested, with a single pulsed avalanche energy rating of 530mJ.



The MOSFET is housed in a TO-220 Fullpack (TO-220F-3) through-hole package, providing isolation and ease of mounting. The operating junction temperature range is -55°C to +150°C. The device is Pb-Free and RoHS compliant.

FQPF13N50CF Quick Information

Product Type: MOSFET
Canonical Name: FQPF13N50CF N-Channel MOSFET, 500V, 13A, TO-220F-3
Subcategory: N-Channel MOSFET

FQPF13N50CF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-Free

FQPF13N50CF Features

  • N-Channel MOSFET rated at 500V and 13A.
  • Low on-state resistance of 540mΩ maximum.
  • Low gate charge of 43nC typical.
  • 100% avalanche tested with 530mJ rating.
  • Pb-Free and RoHS compliant package.

FQPF13N50CF Applications

  • Ideal for switched mode power supplies.
  • Used in active power factor correction circuits.
  • Suitable for electronic lamp ballasts.
  • Designed for high-efficiency power conversion.

FQPF13N50CF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage of the FQPF13N50CF?

The maximum drain-source voltage (VDSS) is 500V.

What is the continuous drain current rating at 25°C?

The continuous drain current is 13A at TC=25°C.

What is the package type of the FQPF13N50CF?

The device is available in a TO-220 Fullpack (TO-220F-3) through-hole package.

What is the operating temperature range?

The operating junction temperature range is -55°C to +150°C.

Is the FQPF13N50CF RoHS compliant?

Yes, the device is RoHS3 compliant and Pb-Free.

What is the typical gate charge of this MOSFET?

The typical gate charge (Qg) is 43nC at VGS=10V.

What is the maximum on-state resistance?

The maximum drain-source on-state resistance is 540mΩ at VGS=10V and ID=6.5A.
