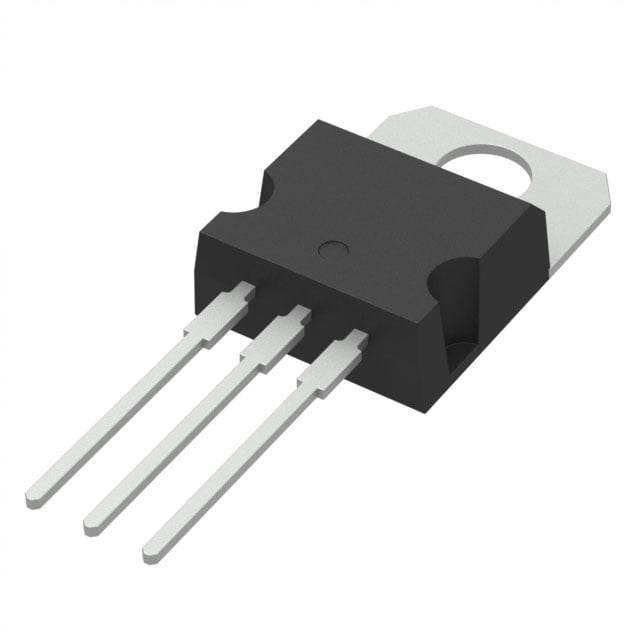

FQP50N06L The FQP50N06L is an N-Channel MOSFET from On Semiconductor with a maximum drain-source voltage of 60V and continuous drain current of 52.4A. It comes in a TO-220-3 through-hole package.
Mfr Part #:

FQP50N06L

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
The FQP50N06L is an N-Channel MOSFET from On Semiconductor with a maximum drain-source voltage of 60V and continuous drain current of 52.4A. It comes in a TO-220-3 through-hole package.
✓ Total Stock: 12,460 pcs

FQP50N06L Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
12,000 pcs
On Request
12000 pcs On Request 1 On Request On Request On Request On Request On Request
Fe Components ✓
Non-Authorised Inventory information
460 pcs
On Request
460 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FQP50N06L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Lead Style
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

FQP50N06L Description

Short technical summary and product information.

The FQP50N06L is an N-Channel MOSFET manufactured by On Semiconductor. It features a maximum drain-source voltage (Vdss) of 60V and a continuous drain current (Id) of 52.4A at case temperature. The device utilizes MOSFET (Metal Oxide) technology.



Key electrical characteristics include a maximum on-resistance (Rds(on)) of 21 mOhm at Vgs=10V and Id=26.2A, a maximum gate charge (Qg) of 32 nC at Vgs=5V, and a maximum input capacitance (Ciss) of 1630 pF at Vds=25V. The gate threshold voltage (Vgs(th)) is a maximum of 2.5V at Id=250µA, and the maximum gate-source voltage is ±20V. The drive voltage range is 5V to 10V.



The device is designed for through-hole mounting in a TO-220-3 package. It can dissipate up to 121W at case temperature and operates over a junction temperature range of -55°C to 175°C. These specifications make it suitable for power switching and amplification applications.

FQP50N06L Quick Information

Product Type: MOSFET
Canonical Name: FQP50N06L N-Channel MOSFET
Subcategory: N-Channel MOSFET

FQP50N06L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FQP50N06L Features

  • N-Channel MOSFET with 60V drain-source voltage.
  • Continuous drain current rating of 52.4A.
  • Low on-resistance of 21 mOhm at 10V.
  • Through-hole TO-220-3 package for easy mounting.
  • Wide operating temperature range -55°C to 175°C.

FQP50N06L Applications

  • Power supply and DC-DC converter circuits.
  • Motor control and driver applications.
  • Load switching and power management systems.
  • Battery protection and charging circuits.

FQP50N06L FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage of the FQP50N06L?

60V.

What is the continuous drain current rating?

52.4A at case temperature.

What is the on-resistance of this MOSFET?

21 mOhm maximum at Vgs=10V and Id=26.2A.

What package does the FQP50N06L come in?

TO-220-3 through-hole package.

What is the operating temperature range?

-55°C to 175°C (junction temperature).

Is the FQP50N06L RoHS compliant?

Yes, RoHS3 compliant (unverified).

What is the gate threshold voltage?

Maximum 2.5V at Id=250µA.
