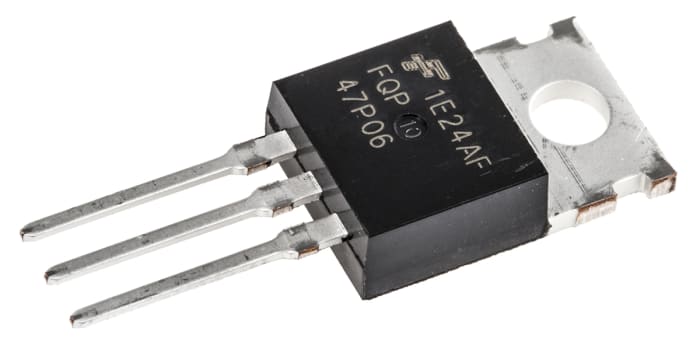

The FQP47P06 is a P-Channel enhancement mode power MOSFET manufactured by On Semiconductor using their proprietary planar stripe and DMOS technology. This MOSFET is designed to deliver low on-state resistance of 26mOhm maximum at 10V gate drive, enabling efficient power handling in a variety of applications.
Key electrical characteristics include a drain-source voltage rating of -60V, continuous drain current of -47A at 25°C case temperature, and a maximum power dissipation of 160W. The device features a gate threshold voltage of 4V maximum at 250µA drain current and a maximum gate charge of 110nC at 10V, supporting efficient switching performance.
The FQP47P06 is housed in a standard TO-220-3 through-hole package, suitable for easy mounting on heatsinks. It is rated for operation over a junction temperature range of -55°C to 175°C, with a maximum junction-to-case thermal resistance of 0.94°C/W. The device is 100% avalanche tested and offers high avalanche energy capability of 820mJ single pulse.
The drain-source voltage (VDSS) is -60 V.
The continuous drain current is -47 A at Tc = 25°C.
The maximum on-resistance is 26 mOhm at Vgs = -10 V and Id = -23.5 A.
The device is available in a TO-220-3 through-hole package.
The operating junction temperature range is -55°C to 175°C.
The RoHS status is listed as RoHS3 Compliant, though this is unverified.
