| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,370 pcs
|
4370 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

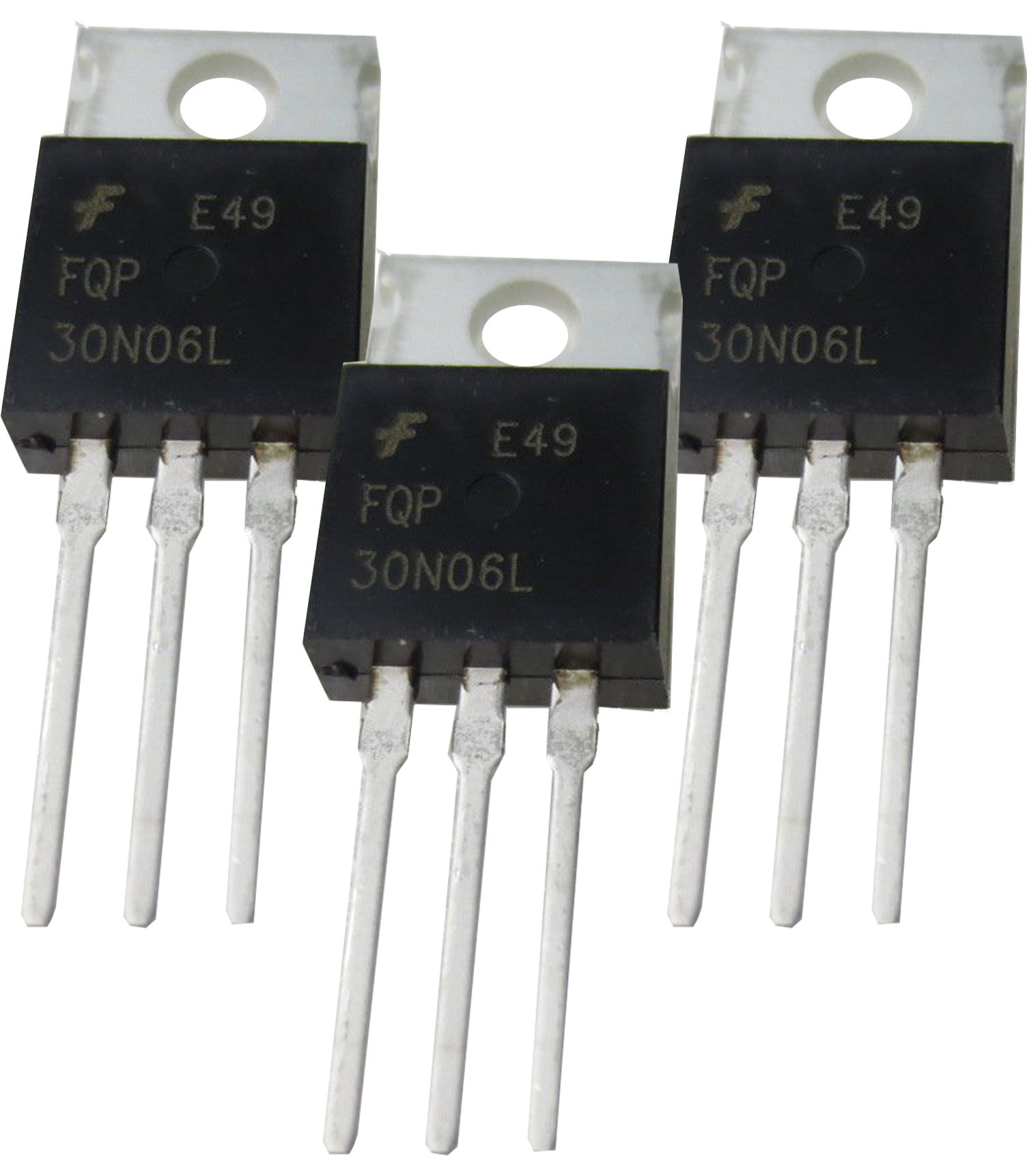

The FQP30N06L is an N-Channel enhancement-mode power MOSFET manufactured by ON Semiconductor. It is designed for high-efficiency power management applications requiring a 60V drain-source breakdown voltage and a continuous drain current of 32A.
Key electrical characteristics include a maximum on-resistance of 35mOhm at 16A and 10V gate drive, a gate threshold voltage of 2.5V at 250µA, and a maximum gate charge of 20nC at 5V. The device is capable of dissipating up to 79W of power and operates over a junction temperature range of -55°C to 175°C.
The FQP30N06L is housed in a standard TO-220-3 through-hole package, making it suitable for a wide range of power conversion and switching circuits. Its low gate charge and input capacitance (1040pF at 25V) enable efficient switching at moderate frequencies.
The maximum drain-source voltage (Vdss) is 60V.
The continuous drain current is 32A at the case temperature (Tc).
The maximum on-resistance is 35mOhm at a drain current of 16A and gate-source voltage of 10V.
The FQP30N06L is available in a TO-220-3 through-hole package.
The operating junction temperature range is -55°C to 175°C.
Yes, the FQP30N06L is listed as RoHS3 compliant, though this is unverified from a manufacturer document.
