Mfr Part #:

FQP17P10

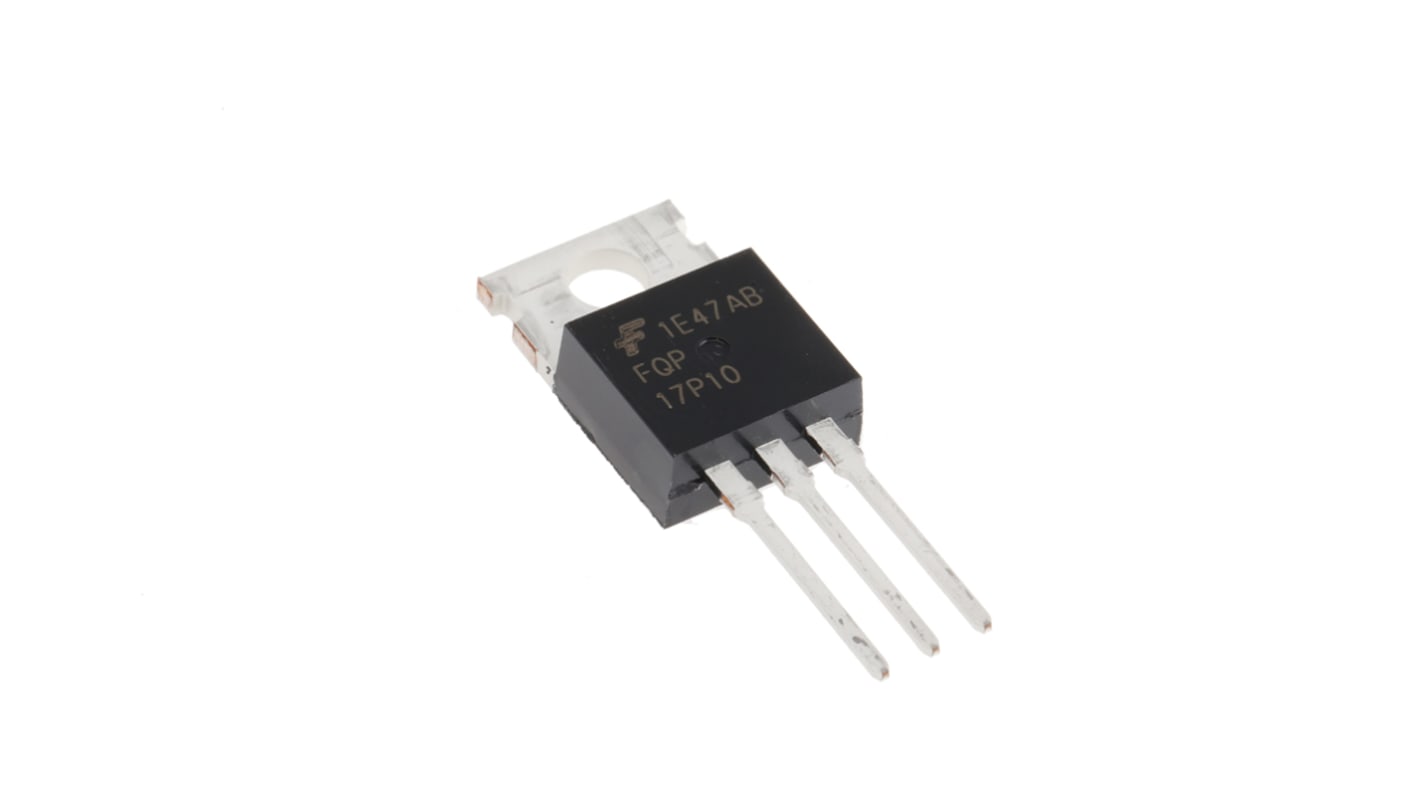

FQP17P10 is a P-Channel power MOSFET from On Semiconductor. It features a 100V drain-source voltage rating, 16.5A continuous drain current, and 190mOhm on-resistance at 10V gate drive.

✓ Total Stock: 62,750 pcs

$ Price Range: $2.94

FQP17P10 Available from 3 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Flip Electronics ✓ Non-Authorised Inventory information	61,570 pcs On Request	61570 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	855 pcs On Request	855 pcs	On Request	1	On Request	On Request	13+	On Request	On Request
Components Technology Group, Inc. ✓ Non-Authorised Inventory information	325 pcs On Request	325 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

FQP17P10 Description

Short technical summary and product information.

The FQP17P10 is a P-Channel enhancement-mode power MOSFET manufactured by On Semiconductor. It is designed for medium-power switching applications requiring a high-voltage P-Channel device.

Key electrical specifications include a drain-to-source voltage (Vdss) of 100V, continuous drain current of 16.5A at case temperature (Tc), and a maximum on-resistance of 190mOhm at Vgs = 10V and Id = 8.25A. The gate threshold voltage is 4V maximum at Id = 250µA. The device can dissipate up to 100W at Tc.

The FQP17P10 is housed in a standard TO-220-3 through-hole package, suitable for heatsink mounting. It operates over a junction temperature range of -55°C to 175°C.

FQP17P10 Quick Information

Product Type: Power MOSFET

Canonical Name: FQP17P10 P-Channel Power MOSFET

Subcategory: Single MOSFET

FQP17P10 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

FQP17P10 Estimated Pricing

Qty	Low	High
1+	$2.94	$2.94

Estimated market price range - modelled values for guidance only, not live distributor offers.

FQP17P10 Features

P-Channel MOSFET with 100V drain-source rating.
Continuous drain current of 16.5A at case temperature.
Low on-resistance of 190mOhm at 10V gate drive.
Through-hole TO-220-3 package for easy mounting.
Wide operating temperature range -55°C to 175°C.

FQP17P10 Applications

Used in power supply load switching circuits.
Suitable for DC motor control applications.
Ideal for battery protection and management systems.
Applicable in high-side load switching designs.

FQP17P10 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the maximum drain-source voltage of the FQP17P10?

The maximum drain-source voltage (Vdss) is 100V.

What is the continuous drain current rating of the FQP17P10?

The continuous drain current is 16.5A at case temperature (Tc).

What is the on-resistance of the FQP17P10?

The maximum on-resistance is 190mOhm at Vgs = 10V and Id = 8.25A.

What package does the FQP17P10 come in?

The FQP17P10 is available in a TO-220-3 through-hole package.

What is the operating temperature range of the FQP17P10?

The operating junction temperature range is -55°C to 175°C.

Is the FQP17P10 RoHS compliant?

The RoHS status is listed as RoHS3 Compliant, but this is unverified.

Category	Transistors - FETs, MOSFETs - Single
Manufacturer Name	On Semiconductor
Current	16.5 A (Tc)
Drain to Source Voltage (Vdss)	100 V
Drive Voltage (Max Rds On, Min Rds On)	10V
FET Type	P-Channel
Gate Charge (Qg) (Max) @ Vgs	39 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds	1100 pF @ 25 V
Mounting Type	Through Hole
Operating Temperature	-55°C ~ 175°C (TJ)
Power Dissipation (Max)	100 W (Tc)
Rds On (Max) @ Id, Vgs	190 mOhm @ 8.25A, 10V
Supplier Device Package	TO-220-3
Technology	MOSFET (Metal Oxide)
Vgs (Max)	±30V
Vgs(th) (Max) @ Id	4V @ 250µA
