| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
97,650 pcs
|
97650 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,336 pcs
|
2336 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,470 pcs
|
1470 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Medical Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The FQA36P15 is a P-Channel enhancement-mode MOSFET manufactured by ON Semiconductor. It is designed for high-power switching applications requiring a drain-source voltage rating of 150V and a continuous drain current of 36A at case temperature (Tc). The device features a maximum on-resistance of 90mOhm at 18A drain current and 10V gate drive.
Key electrical characteristics include a maximum gate charge of 105nC at 10V and an input capacitance of 3320pF at 25V drain-source voltage. The gate threshold voltage is 4V maximum at 250µA drain current, and the maximum gate-source voltage rating is ±30V. The device can dissipate up to 294W at case temperature.

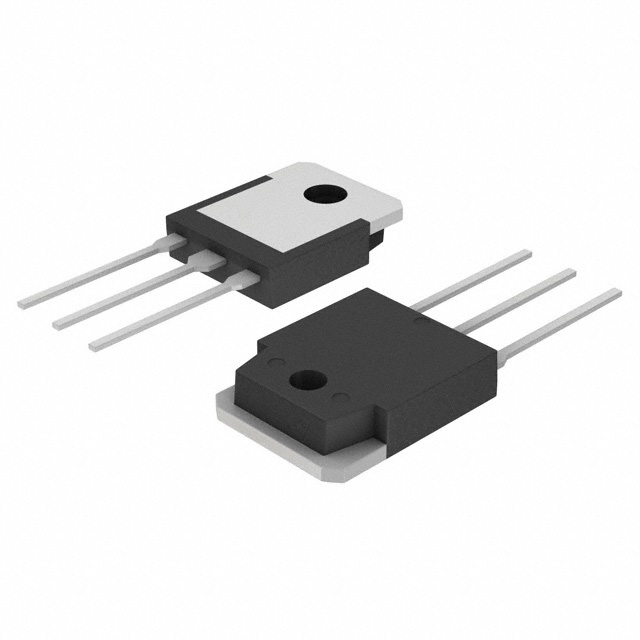

The FQA36P15 is housed in a through-hole TO-3P-3 / SC-65-3 package, with the supplier device package designated as TO-3PN. It operates over a junction temperature range of -55°C to 175°C. This MOSFET is suitable for power management, DC-DC converters, and motor control circuits where high efficiency and reliability are required.
| Qty | Low | High |
|---|---|---|
| 450+ | $3.84 | $3.84 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-source voltage rating is 150V.
The maximum continuous drain current is 36A at case temperature (Tc).
The maximum on-resistance is 90mOhm at 18A drain current and 10V gate-source voltage.
It comes in a through-hole TO-3P-3 / SC-65-3 package, with the supplier device package designated as TO-3PN.
The operating junction temperature range is -55°C to 175°C.
The maximum gate threshold voltage is 4V at 250µA drain current.
The maximum power dissipation is 294W at case temperature (Tc).
