Mfr Part #:

FPS01-900-34

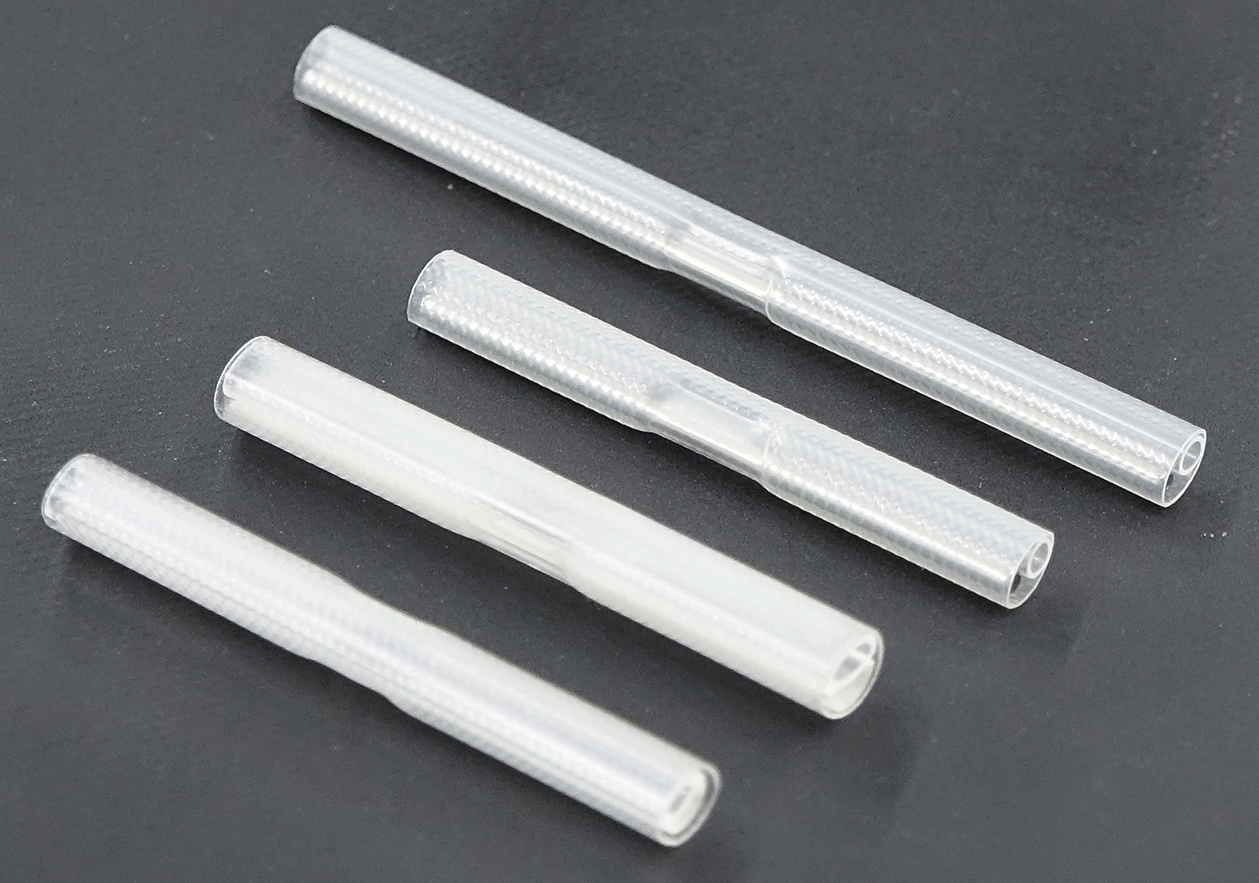

The Fujikura FPS01-900-34 is a fiber protection sleeve designed for single fiber applications. It offers a sleeve length of 34mm and a diameter after shrink of 2.3mm.

✓ Total Stock: 200 pcs

$ Price Range: $1.20

FPS01-900-34 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Hybrid Electronics ✓ Non-Authorised Inventory information	200 pcs On Request	200 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

FPS01-900-34 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Fujikura America, Inc.
SVHC Present	Not Present
Storage Temperature	[{'min_value': -40, 'max_value': 60, 'unit': 'deg C', 'display_value': '-40 to 60 °C'}]

View Similar Products (0)

FPS01-900-34 Description

Short technical summary and product information.

The Fujikura FPS01-900-34 is a fiber protection sleeve from the FPS01 series, designed for reliable protection of single fiber splice points. This model features a sleeve length of 34mm and a strength member length of 35mm. After heat shrinking, the sleeve achieves a diameter of 2.3mm, suitable for single fiber applications.

The construction utilizes a Polyolefin based on Polyethylene outer tube and an Ethylene-Vinyl Acetate inner tube, with a stainless steel strength member. It is designed to accommodate fiber coating diameters up to 0.9mm and has a recommended cleave length of 13mm.

This fiber protection sleeve operates within a temperature range of -10 to 50°C and a humidity range of 0 to 95% RH (non-dew). Storage conditions before shrinking are -40 to 60°C, non-dew. The FPS01-900-34 is part of Fujikura's line of reliable fiber optic protection solutions.

FPS01-900-34 Quick Information

Product Type: Fiber Protection Sleeve

Series: FPS01

Canonical Name: Fujikura FPS01-900-34 Fiber Protection Sleeve

FPS01-900-34 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

FPS01-900-34 Estimated Pricing

Qty	Low	High
1+	$1.20	$1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

FPS01-900-34 Features

34mm sleeve length for fiber protection.
2.3mm diameter after shrink.
Designed for single fiber applications.
Operates from -10 to 50 degrees Celsius.
Polyolefin and EVA construction with steel strength member.

FPS01-900-34 Applications

Protects single fiber splice points.
Used in fiber optic network installations.
Suitable for field repair operations.
Ensures splice integrity in various environments.

FPS01-900-34 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the sleeve length of the Fujikura FPS01-900-34?

The sleeve length is 34mm.

What is the diameter of the Fujikura FPS01-900-34 after shrinking?

The diameter after shrink is 2.3mm.

What type of fiber does the FPS01-900-34 support?

It is designed for single fiber applications.

What is the recommended cleave length for the FPS01-900-34?

The recommended cleave length is 13mm.

What is the operating temperature range for the Fujikura FPS01-900-34?

The operating temperature range is -10 to 50°C.

What is the storage temperature for the Fujikura FPS01-900-34 before shrinking?

The storage temperature before shrinking is -40 to 60°C.
