| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Capacitance | |
| Diameter | |
| Dielectric Material | |
| Height | |
| Industrial Grade | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Package Type | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Torque (M6 Thread) | |
| Voltage Rating |

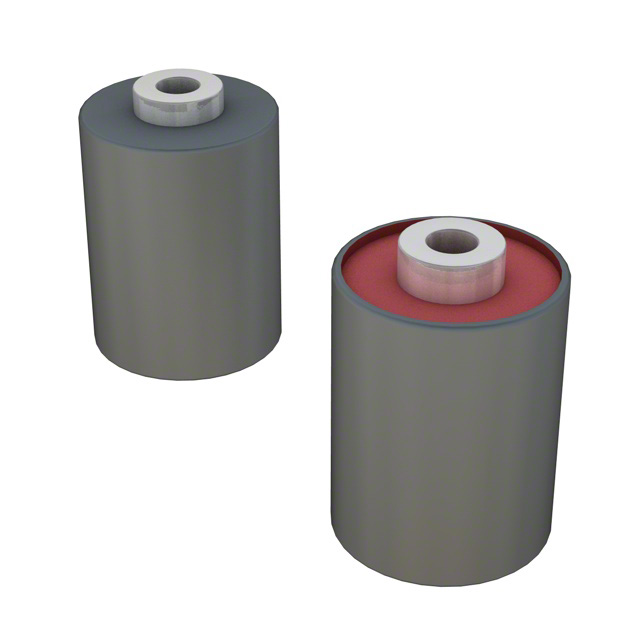

This is a metallized polypropylene film capacitor from Kyocera AVX, part of the FPG series. It has a capacitance of 0.47 µF with a tolerance of ±5% and is rated for 2600 V DC operation. The dielectric is polypropylene (PP) with metallized construction, featuring controlled self-healing properties and reinforced metallization for high impulse currents. The operating temperature range is -40°C to 85°C.
The capacitor is housed in an axial can package with threaded female screw terminals (M6) for chassis mounting. The maximum torque for the M6 terminals is 4.5 Nm. The package dimensions are 40.00 mm diameter and 62.50 mm height.
Typical applications include protection of Gate Turn-off Thyristors (GTO) and medium frequency tuning circuits. The axial connections are designed to reduce series inductance and provide rigid mechanical mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $90.04 | $90.04 |
| 48+ | $72.49 | $72.49 |
| 96+ | $70.91 | $70.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
0.47 µF.
2600 V DC (based on datasheet voltage code W).
Metallized Polypropylene (PP).
±5%.
Axial, Can - Screw Terminals.
-40°C to 85°C.
Chassis Mount.
