| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
48,000 pcs
|
48000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Fault Protection | |
| Features | |
| Interface | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Operating Voltage | |
| Output Configuration | |
| Output Type | |
| Ratio | |
| Rds On (Typ) | |
| Supplier Device Package | |
| Supplier Package | |
| Switch Type | |
| Voltage |
The FPF2895VUCX from On Semiconductor is a versatile current limit power switch designed for robust system protection. It features a wide input voltage range of 4V to 22V and a high current capability of 5A.
Key protection features include Over-Current Protection (OCP) with adjustable limits from 500mA to 5A, Over-Voltage Protection (OVP) with selectable levels, and True Reverse Current Block (TRCB). The device also incorporates thermal shutdown and an open-drain fault flag output for system monitoring.
With an ultra-low typical on-resistance of 27 mOhm, the FPF2895VUCX minimizes power loss. It is AEC-Q100 qualified (Grade 2) and suitable for applications such as laptops, desktop computing, monitors, and power accessories.

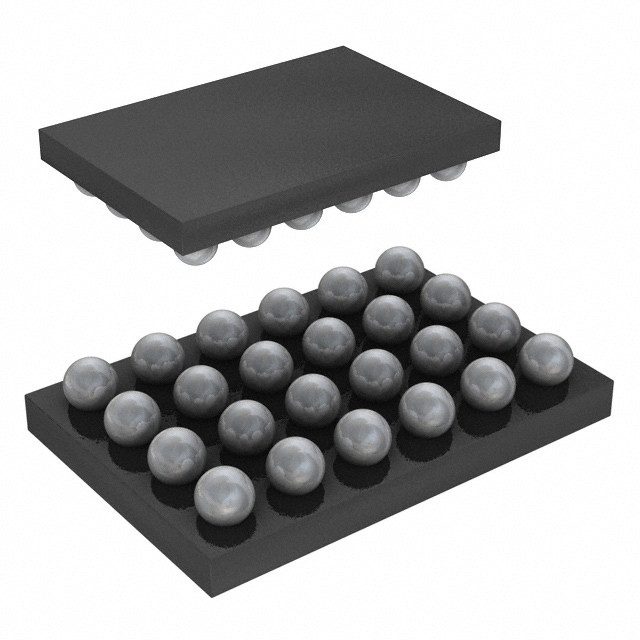

The FPF2895VUCX is supplied in a compact 24-bump, 1.67mm x 2.60mm Wafer-Level Chip-Scale Package (WL-CSP) with a 0.4mm pitch, ideal for space-constrained designs. It supports selectable ON polarity and selectable over-current behavior modes like Auto-Restart and Current Source.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The FPF2895VUCX supports an input voltage range of 4V to 22V.
The FPF2895VUCX has a maximum current rating of 5A.
The typical on-resistance is 27 mOhm at 5V and 25°C.
Selectable OVLO options include 5.95V ± 50mV, 10V ± 100mV, 16.8V ± 300mV, and 23V ± 460mV.
It includes current limiting (adjustable), over temperature, over voltage, reverse current, and UVLO protection.
The operating temperature range is -40°C to 105°C.
It is supplied in a 24-WLCSP (Wafer-Level Chip-Scale Package).
