| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
264,000 pcs
|
264000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,043 pcs
|
1043 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Fault Protection | |
| Features | |
| Halogen Free | |
| Input Type | |
| Interface | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Ratio | |
| Rds On (Typ) | |
| SVHC Present | |
| Supplier Device Package | |
| Switch Type | |
| Voltage | |
| Voltage Supply |
The FPF2286UCX from ON Semiconductor is a single-channel switch with integrated over-voltage protection (OVP). It operates over an input voltage range of 2.8V to 23V and can handle a maximum continuous current of 4A. The device features internal low RDS(on) NMOS transistors with a typical resistance of 25mOhm.
Key protection features include over-voltage lockout (OVLO), which is externally adjustable, short circuit protection with auto-restart, and over-temperature protection (thermal shutdown). It offers a super-fast OVLO response time of typically 40ns and robust ESD performance.

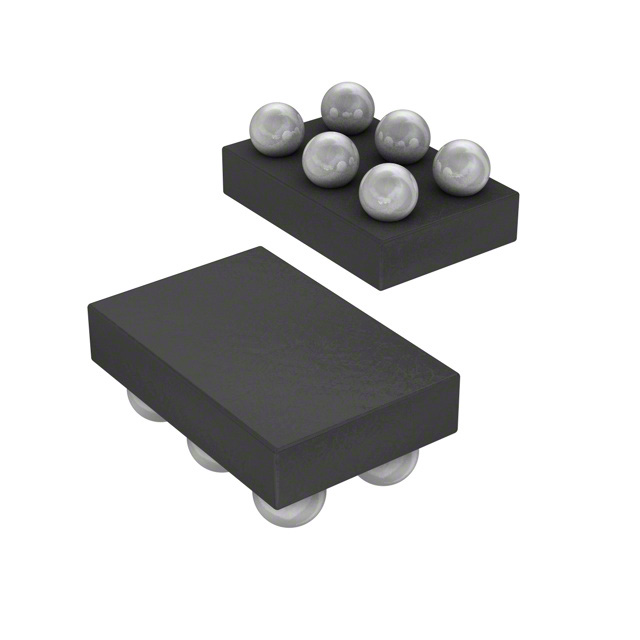

The FPF2286UCX is available in a compact 6-bump WLCSP package, making it suitable for space-constrained applications. It operates within a free-air temperature range of -40°C to +85°C. Typical applications include mobile phones, PDAs, and GPS devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.8V to 23V.
-40°C to +85°C.
6-WLCSP (1.3x0.9mm).
25mΩ.
Up to 28V with 40ns response time.
4A.
Yes, with auto-restart.
