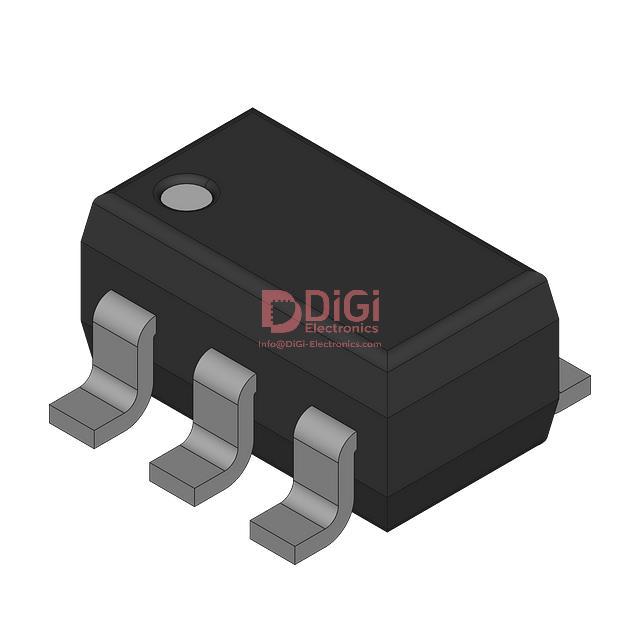

FPF2110 The ON Semiconductor FPF2110 is a P-channel load switch designed for system and load protection. It operates from 1.8V to 5.5V and features a 400mA current limit.
Mfr Part #:

FPF2110

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor FPF2110 is a P-channel load switch designed for system and load protection. It operates from 1.8V to 5.5V and features a 400mA current limit.
✓ Total Stock: 139,077 pcs
$ Price Range: $0.32

FPF2110 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
139,077 pcs
On Request
139077 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FPF2110 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Fault Protection
Features
Halogen Free
Input Type
Interface
Mounting Type
Number of Outputs
Operating Temperature
Operating Voltage
Output Configuration
Output Type
Ratio
Rds On (Typ)
SVHC Present
Supplier Device Package
Supplier Package
Switch Type
Voltage
View Similar Products (0)

FPF2110 Description

Short technical summary and product information.

The FPF2110 from ON Semiconductor is an IntelliMAX advanced load management product. This P-channel MOSFET load switch provides system protection against overcurrent conditions. It operates over an input voltage range of 1.8V to 5.5V and offers a fixed current limit of 400mA.



Key features include thermal shutdown protection, reverse current blocking, and a status flag (FLAGB) to indicate fault conditions. The switch is controlled via a logic input (ON) compatible with low-voltage signals. The device is available in a compact SOT-23-5 package, making it suitable for space-constrained applications.



This load switch is ideal for applications requiring controlled power distribution and protection, such as in PDAs, cell phones, GPS devices, and peripheral ports. Its robust design ensures reliable operation under various load conditions.

FPF2110 Quick Information

Product Type: Load Switch
Series: FPF2108-FPF2110
Canonical Name: FPF2110 Load Switch
Subcategory: Power Distribution Switches

FPF2110 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FPF2110 Estimated Pricing

Qty Low High
1+ $0.32 $0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

FPF2110 Features

  • 1.8V to 5.5V input voltage range.
  • 400mA fixed current limit protection.
  • Status flag indicates fault conditions.
  • Thermal shutdown prevents overheating.
  • Compact SOT-23-5 package.

FPF2110 Applications

  • Protects systems from overcurrent.
  • Ideal for portable electronics.
  • Used in power management circuits.
  • Provides controlled turn-on.
  • Suitable for hot swap supplies.

FPF2110 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range for the FPF2110?

The input voltage range is 1.8 V to 5.5 V.

What is the current limit of the FPF2110?

The FPF2110 has a current limit of 400 mA.

What is the typical on-resistance (Rds On) of the FPF2110?

The typical on-resistance is 125 mOhm.

What package type is the FPF2110 available in?

The FPF2110 is available in a SOT-23-5 package.

What are the operating temperature limits for the FPF2110?

The operating temperature range is -40°C to 85°C (TA).

Does the FPF2110 have thermal shutdown protection?

Yes, the FPF2110 includes thermal shutdown protection.

What fault protection features are included in the FPF2110?

The FPF2110 includes current limiting, over temperature protection, reverse current protection, and undervoltage lockout (UVLO).
