FPF2109 Description

Short technical summary and product information.

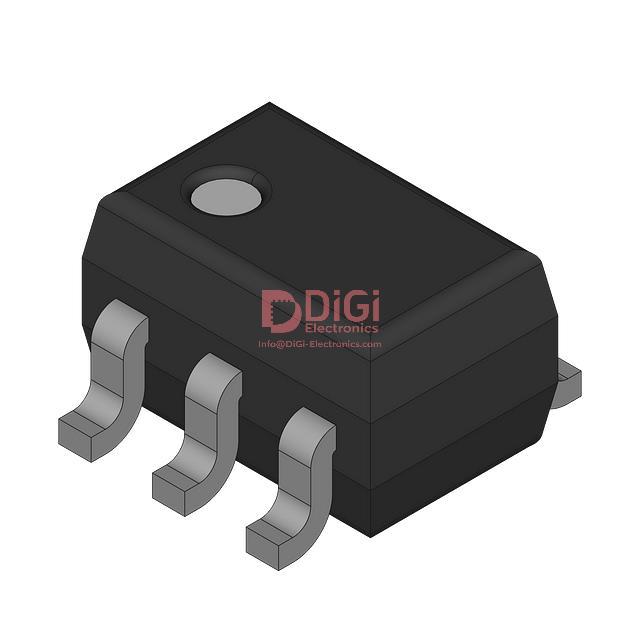

The FPF2109 is a load switch from ON Semiconductor, part of the IntelliMAX family. It provides robust protection for systems and loads against overcurrent conditions. This device utilizes a P-channel MOSFET with a fixed current limit of 200mA, suitable for applications requiring controlled power delivery.



The FPF2109 operates over an input voltage range of 1.8V to 5.5V. It includes essential protection features such as thermal shutdown, reverse current blocking, and undervoltage lockout (UVLO). The switch is controlled via a logic-level ON input, allowing direct interface with low-voltage control signals. Its fault protection includes current limiting, over-temperature protection, reverse current blocking, and UVLO.



Packaged in a space-saving SOT-23-5 (SC-74A, SOT-753) surface-mount package, the FPF2109 is designed for applications where board space is limited. Its typical Rds On is 125mOhm, ensuring efficient power transfer. The device is suitable for various portable and consumer electronics, including PDAs, cell phones, and digital cameras, where reliable power management and load protection are critical.

FPF2109 Quick Information

Product Type: Load Switch
Series: IntelliMAX
Canonical Name: FPF2109 Load Switch
Subcategory: Power Distribution Switches, Load Drivers

FPF2109 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FPF2109 Estimated Pricing

Qty Low High
1+ $0.32 $0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

FPF2109 Features

  • Provides 200mA current limit for load protection.
  • Operates from 1.8V to 5.5V input voltage.
  • Includes thermal shutdown and reverse current blocking.
  • Available in a compact SOT-23-5 package.
  • Features a logic-level ON/OFF interface.

FPF2109 Applications

  • Ideal for portable electronic devices.
  • Suitable for power management applications.
  • Used in systems requiring load protection.
  • Protects against overcurrent conditions.

FPF2109 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the input voltage range for the FPF2109?

The FPF2109 operates over an input voltage range of 1.8 V to 5.5 V.

What is the current limit of the FPF2109 load switch?

The FPF2109 has a current limit of 200 mA.

What is the typical Rds On for the FPF2109?

The typical Rds On for the FPF2109 is 125 mOhm.

What is the operating temperature range of the FPF2109?

The FPF2109 operates between -40°C and 85°C.

What package type is the FPF2109 available in?

The FPF2109 is available in a SOT-23-5 package.

What fault protection features does the FPF2109 offer?

The FPF2109 offers current limiting, over temperature protection, reverse current blocking, and undervoltage lockout (UVLO).
