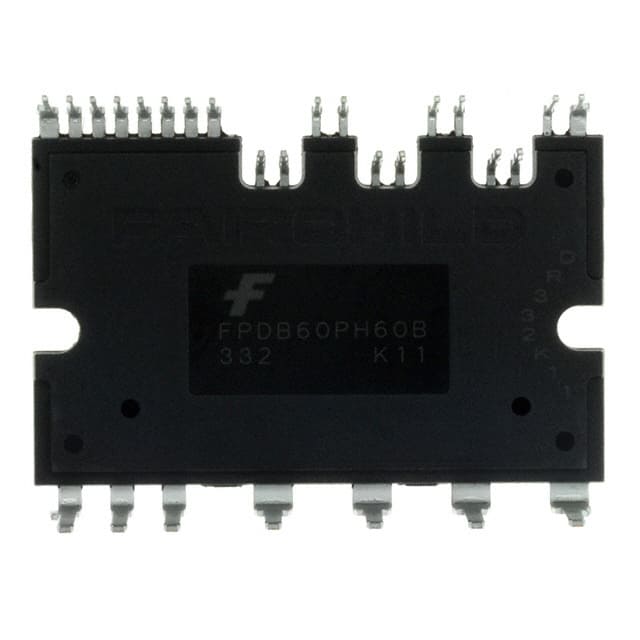

The FPDB60PH60B is a PFC SPM 3 module from On Semiconductor, designed for 2-Phase Bridgeless Power Factor Correction (PFC) applications. This module integrates two IGBTs with optimized gate drive to minimize EMI and losses, along with multiple protection features including under-voltage lockout, over-current shutdown, thermal monitoring, and fault reporting. It also includes a built-in NTC thermistor for temperature monitoring and a built-in shunt resistor for current sensing, providing additional space savings and mounting convenience.
Key electrical specifications include a collector-emitter voltage rating of 600V and a continuous collector current of 60A. The module is optimized for a switching frequency of 20 kHz and has an isolation rating of 2500 Vrms. The input logic is active-high, compatible with 3.3V or 5V logic, and features Schmitt-trigger input for noise immunity.
The module is housed in a 27-PowerDIP through-hole package with a low thermal resistance AlN DBC substrate. It is UL certified (E209204) and is a Pb-free device. The FPDB60PH60B is suitable for consumer, medical, and industrial power supplies requiring high efficiency and compact design.
| Qty | Low | High |
|---|---|---|
| 1+ | $23.03 | $23.03 |
| 10+ | $15.90 | $15.90 |
| 100+ | $15.67 | $15.67 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The module is rated for 600V collector-emitter voltage.
The module comes in a 27-PowerDIP Module (1.205", 30.60mm) through-hole package.
The module is listed as RoHS3 compliant and is a Pb-free device, though the RoHS status is unverified.
It includes under-voltage lockout, over-current shutdown, thermal monitoring, and fault reporting.
Yes, it includes a built-in NTC thermistor for temperature monitoring.
It is optimized for a 20 kHz switching frequency.
It uses active-HIGH logic compatible with 3.3V or 5V and features Schmitt-trigger inputs.
