| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,872 pcs
|
1872 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Current | |
| Medical Grade | |
| Mounting Type | |
| SVHC Present | |
| Tape & Reel | |
| Type | |
| Voltage |

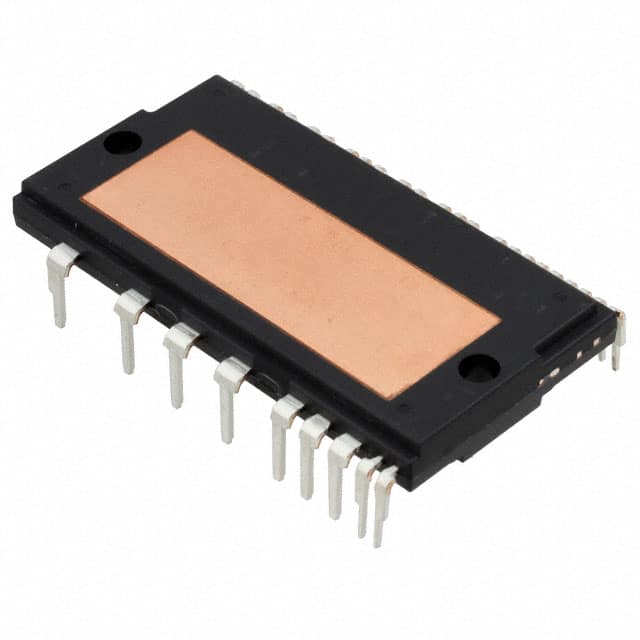

The FPAM30LH60 is a 2-phase IGBT power driver module from ON Semiconductor, designed for motor drive and power conversion applications. It integrates a 600V collector-emitter breakdown voltage and 30A output current capability. The module features 2500Vrms isolation for safety and noise immunity.
The device is housed in a 32-PowerDIP through-hole package measuring 1.370" (34.80mm). This module is part of the SPM (Smart Power Module) series, offering a compact solution for inverter and AC drive designs.
With its through-hole mounting, the FPAM30LH60 is suitable for wave-soldering assembly processes and provides robust mechanical attachment to PCBs.
| Qty | Low | High |
|---|---|---|
| 1+ | $30.30 | $30.30 |
| 8+ | $21.57 | $21.57 |
| 104+ | $19.12 | $19.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
600V
30A
2500Vrms
Through-hole 32-PowerDIP Module (1.370", 34.80mm)
RoHS3 Compliant (unverified)
