Mfr Part #:

FP150R12KT4

Mfr Name: Infineon

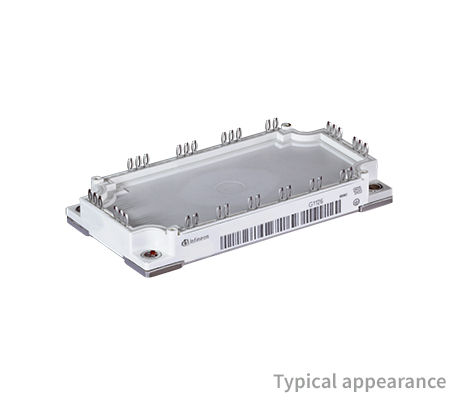

The Infineon FP150R12KT4 is an EconoPIM™3 IGBT module featuring Trench/Fieldstop IGBT4 technology and an integrated NTC temperature sensor. It offers a 1200V collector-emitter voltage and 150A nominal collector current.

✓ Total Stock: 960 pcs

$ Price Range: $103.07

FP150R12KT4 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Xingangxin ✓ Non-Authorised Inventory information	960 pcs On Request	960 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

FP150R12KT4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Infineon
Gate Charge	1.20 µC
Input Capacitance	9.35 nF
Mounting Type	Through Hole
Operating Temperature	150°C

View Similar Products (0)

FP150R12KT4 Description

Short technical summary and product information.

The Infineon FP150R12KT4 is an EconoPIM™3 module designed for power electronic applications. It integrates Trench/Fieldstop IGBT4 technology with Emitter Controlled 4 diodes and an NTC thermistor for temperature monitoring.

Key electrical specifications include a maximum collector-emitter voltage (VCES) of 1200V and a continuous DC collector current (IC nom) of 150A at 100°C case temperature. The module features low VCEsat with a positive temperature coefficient, contributing to efficient operation. Switching characteristics such as turn-on and turn-off delay times, rise and fall times, and turn-on energy loss are detailed in the datasheet.

Mechanical features include a copper base plate and a standard housing, designed for high power density. The integrated NTC temperature sensor simplifies thermal management in system designs. This module is suitable for applications such as servo drives, motor drives, and auxiliary inverters.

This IGBT module utilizes solder contact technology and is housed in a standard package suitable for through-hole mounting.

FP150R12KT4 Quick Information

Product Type: IGBT Module

Canonical Name: Infineon FP150R12KT4 EconoPIM™3 Module with Trench/Fieldstop IGBT4 and Emitter Controlled 4 diode and NTC

Subcategory: IGBT Modules

FP150R12KT4 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

FP150R12KT4 Estimated Pricing

Qty	Low	High
1+	$103.07	$103.07

Estimated market price range - modelled values for guidance only, not live distributor offers.

FP150R12KT4 Features

1200V collector-emitter voltage rating.
150A continuous collector current.
Integrated NTC temperature sensor.
Low VCEsat with positive temperature coefficient.
High power density module.

FP150R12KT4 Applications

Suitable for servo drives.
Used in motor drives.
Applicable for auxiliary inverters.

FP150R12KT4 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the maximum collector-emitter voltage of the FP150R12KT4?

1200 V at 25°C junction temperature.

What package type is the FP150R12KT4?

Through-hole module.

What is the maximum operating junction temperature?

150°C.

What is the continuous DC collector current rating?

150 A at 100°C case temperature.

Does the module have an integrated temperature sensor?

Yes, an integrated NTC thermistor.

What is the collector-emitter saturation voltage?

Maximum 2.10 V at IC=150 A, VGE=15 V, across temperature range.

What is the typical gate charge?

1.20 µC for VGE=-15V to +15V.
