| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Drive Level | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Height | |
| Industrial Grade | |
| Length | |
| Load Capacitance | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Shunt Capacitance (Maximum) | |
| Storage Temperature | |
| Storage Temperature Range | |
| Tape & Reel | |
| Type | |
| Width |

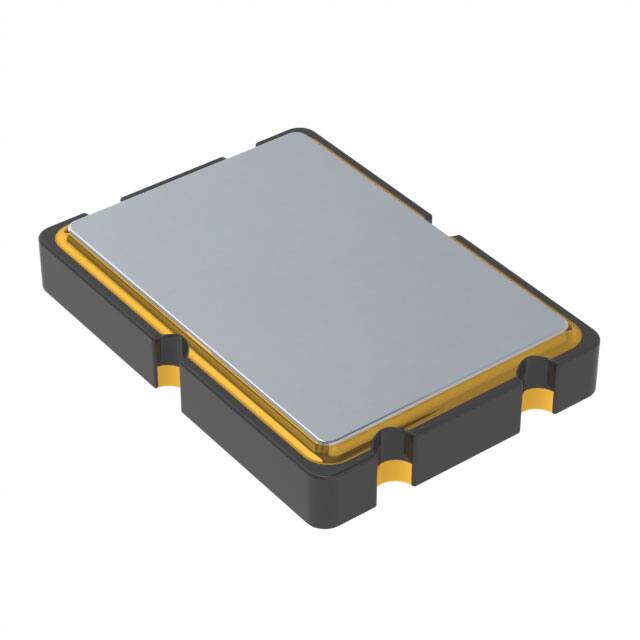

The FP1200039 is a 12 MHz fundamental mode quartz crystal from Diodes Incorporated, part of the FP Series. It is housed in a rugged 7.0 x 5.0mm ceramic SMD package with a 4-pad seam seal design, ideal for surface mount assembly.
Key electrical specifications include a frequency tolerance of ±30ppm at 25°C, frequency stability of ±50ppm over the operating temperature range of -20°C to +70°C, and a load capacitance of 18pF. The maximum equivalent series resistance (ESR) is 60Ω, with a typical drive level of 10μW and maximum shunt capacitance of 7pF.
This crystal is suitable for a wide range of applications including disc drives, PCMCIA cards, PCs, and handheld products. The package is RoHS3 compliant and has an MSL rating of 1 (unlimited). Storage temperature range is -55°C to +125°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.19 | $1.19 |
| 10+ | $1.02 | $1.02 |
| 25+ | $0.97 | $0.97 |
| 100+ | $0.88 | $0.88 |
| 250+ | $0.82 | $0.82 |
| 500+ | $0.80 | $0.80 |
| 1,000+ | $0.76 | $0.76 |
| 2,000+ | $0.71 | $0.71 |
| 5,000+ | $0.67 | $0.67 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-20°C to +70°C.
Yes, it is listed as RoHS3 compliant.
4-SMD, No Lead, 7.0 x 5.0mm ceramic package.
12 MHz.
18 pF.
60 Ω.
±50 ppm over the operating temperature range.
