| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
320 pcs
|
320 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

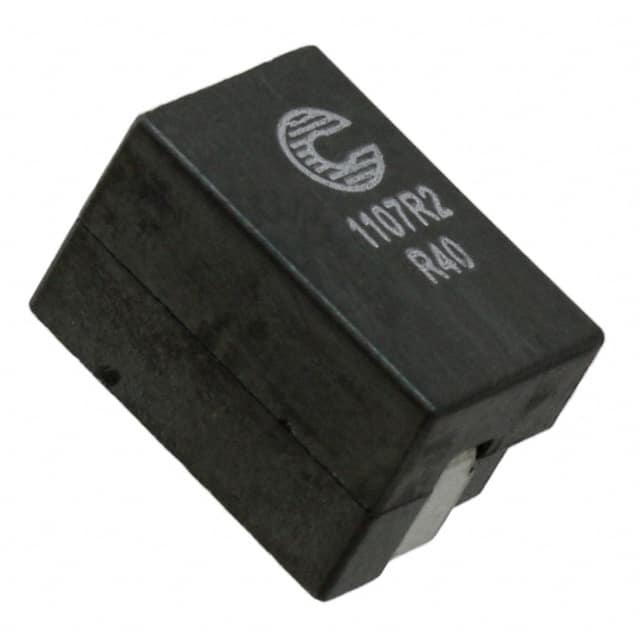

The FP1107R2-R40-R is a fixed inductor manufactured by Eaton - Electronics Division. It features an inductance of 400nH with a tolerance of ±10%, a current rating of 42A, and a DC resistance of 0.47mOhm. The component uses a ferrite core with a drum core, wirewound construction and is unshielded.
This surface mount inductor comes in a nonstandard package with dimensions of 11.00mm x 7.20mm and a height of 7.20mm. It operates over a temperature range of -40°C to 125°C, making it suitable for a variety of power and filtering applications.
The low DC resistance and high current rating make this inductor well-suited for power supply circuits, DC-DC converters, and other high-current applications where efficiency is critical. The ferrite core material provides stable inductance performance across the operating temperature range.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.82 | $1.82 |
| 10+ | $1.50 | $1.50 |
| 100+ | $1.34 | $1.34 |
| 640+ | $1.34 | $1.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 400nH with a tolerance of ±10%.
The current rating is 42A.
The DC resistance is 0.47mOhm.
The package is nonstandard, measuring 11.00mm x 7.20mm with a height of 7.20mm.
The operating temperature range is -40°C to 125°C.
The saturation current is 25A.
