| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

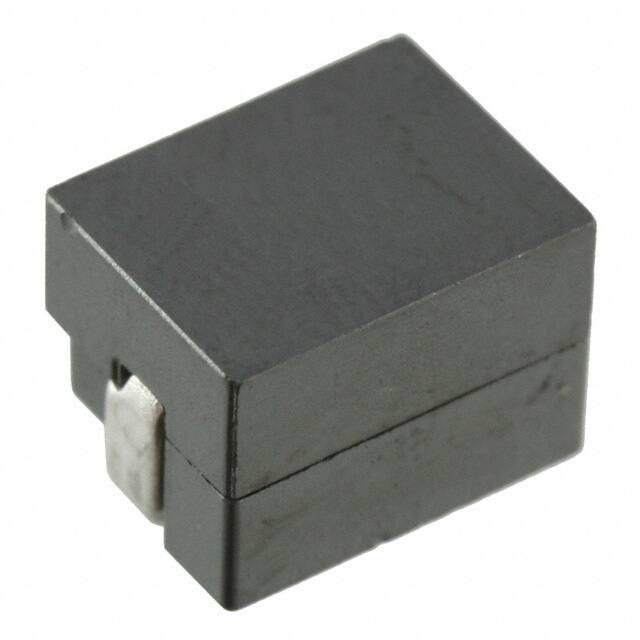

The Eaton FP1007R3-R22-R is a fixed inductor designed for high-current applications. It has an inductance of 215 nH with a tolerance of ±10%. The DC current rating is 61 A, and the saturation current is 50 A. The DC resistance is a low 0.29 mOhm, contributing to high efficiency. This inductor is unshielded and constructed using a wirewound drum core with a ferrite core material. It is designed for surface mount mounting and operates over a temperature range of -40°C to 125°C. The package is nonstandard with dimensions of 10.20 mm length, 7.80 mm width, and 7.50 mm height. This component is suitable for power supply filtering and DC-DC converter circuits where high current handling and low resistance are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.87 | $2.87 |
| 10+ | $2.45 | $2.45 |
| 25+ | $2.26 | $2.26 |
| 100+ | $1.68 | $1.68 |
| 250+ | $1.63 | $1.63 |
| 650+ | $1.54 | $1.54 |
| 1,300+ | $1.43 | $1.43 |
| 1,950+ | $1.38 | $1.38 |
| 4,550+ | $1.36 | $1.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
215 nH with a tolerance of ±10%.
DC current rating is 61 A, and saturation current is 50 A.
0.29 mOhm.
Unshielded.
-40°C to 125°C.
Surface mount.
Length 10.20 mm, width 7.80 mm, height 7.50 mm.
