| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-04-21 12:15:07 |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

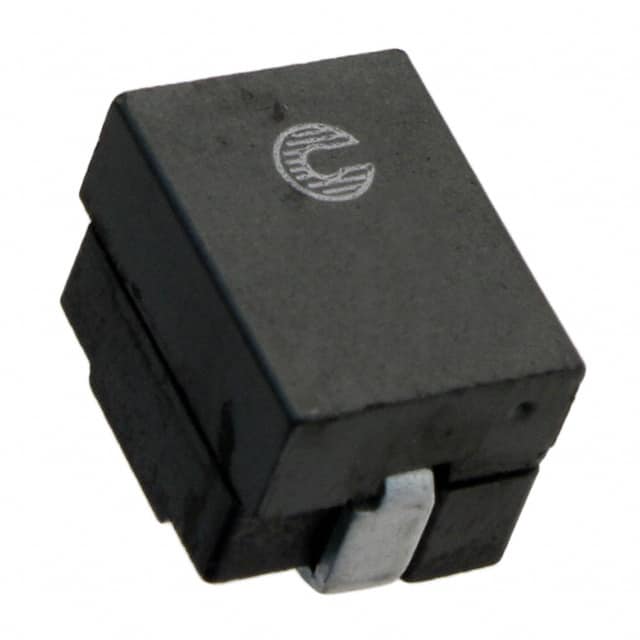

The FP1007R3-R15-R is a fixed inductor from Eaton - Electronics Division. It features an inductance of 150 nH with ±10% tolerance, a high current rating of 61 A, and a low DC resistance of 0.29 mOhm. The component is designed for surface mount assembly in a nonstandard package measuring 10.20 mm x 7.80 mm x 7.50 mm.
This inductor uses a ferrite core with drum core, wirewound construction and is unshielded. It can handle a saturation or peak current of 76 A (as noted). The operating temperature range is -40°C to 125°C, making it suitable for a variety of environments.
Typical applications include power supply circuits, DC-DC converters, and high-current filtering where low DCR is critical. The surface mount package allows for automated assembly. Compliance with RoHS and REACH is indicated but unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.44 | $1.44 |
| 10+ | $1.36 | $1.36 |
| 650+ | $1.36 | $1.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
150 nH with ±10% tolerance.
61 A rated current and 76 A saturation current.
0.29 mOhm.
Surface mount, nonstandard package, 10.20 mm x 7.80 mm x 7.50 mm.
-40°C to 125°C.
No, it is unshielded.
Ferrite.
