| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
180 pcs
|
180 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

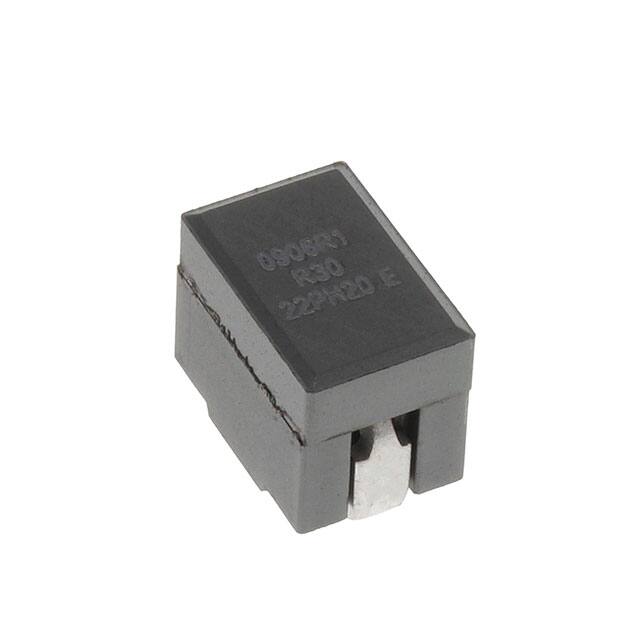

The FP0906R1-R30-R is a fixed inductor manufactured by Eaton - Electronics Division. It features a drum core, wirewound construction with a ferrite core and is unshielded. The inductor offers an inductance of 300 nH with a tolerance of ±10%. It is rated for a continuous current of 51 A and has a saturation current of 27.5 A. The DC resistance is a low 0.29 mOhm, making it suitable for high-current applications. The operating temperature range is -40°C to 125°C. This component is surface mountable with a nonstandard package case measuring 9.40 mm x 6.20 mm x 8.00 mm. It is RoHS3 compliant and REACH unaffected, though these compliance statuses are unverified. Typical applications include power supply circuits, DC-DC converters, and other high-current filtering needs.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.22 | $2.22 |
| 10+ | $1.83 | $1.83 |
| 100+ | $1.51 | $1.51 |
| 250+ | $1.48 | $1.48 |
| 600+ | $1.29 | $1.29 |
| 1,200+ | $1.22 | $1.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
300 nH with ±10% tolerance.
51 A.
0.29 mOhm.
Nonstandard surface mount package.
No, it is unshielded.
Ferrite.
-40°C to 125°C.
