| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,363 pcs
|
1363 pcs | On Request | 1 | On Request | On Request | 14+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

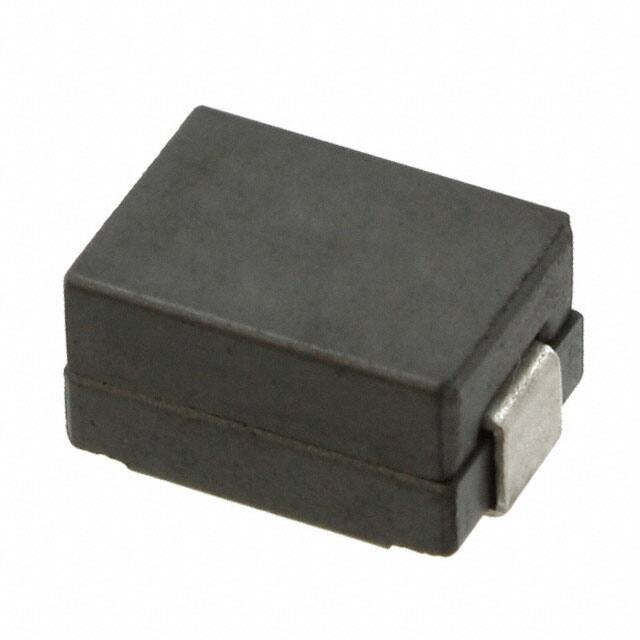

The Eaton FP0404R1-R022-R is a fixed inductor designed for high-current applications. It offers a nominal inductance of 22 nH with a tolerance of ±15%. The inductor is rated for a continuous current of 40 A and has a low DC resistance of 0.32 mOhm, which minimizes power losses. The component is constructed with a drum core and wirewound technology using a ferrite core material, providing reliable performance in power conversion circuits. The inductor is unshielded, which may be suitable for applications where magnetic interference is not critical. The surface mount package measures 4.00 mm x 4.00 mm x 4.00 mm, making it compact for space-constrained designs. It operates over a temperature range of -40°C to 125°C, ensuring functionality in harsh environments. The device is RoHS3 compliant and has an MSL of 1 (unlimited), though these compliance statuses are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.83 | $1.83 |
| 10+ | $1.51 | $1.51 |
| 100+ | $1.24 | $1.24 |
| 250+ | $1.20 | $1.20 |
| 500+ | $1.16 | $1.16 |
| 1,000+ | $0.98 | $0.98 |
| 1,800+ | $0.98 | $0.98 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 22 nH.
The current rating is 40 A.
The DC resistance is 0.32 mOhm.
The package dimensions are 4.00 mm x 4.00 mm x 4.00 mm (L x W x H).
The mounting type is Surface Mount.
The operating temperature range is -40°C to 125°C.
No, it is unshielded.
