| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11,020 pcs
|
11020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Current | |
| Forward Voltage | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Output Power | |
| Output Type | |
| Static dV | |
| Supplier Device Package | |
| Voltage | |
| Zero Crossing Circuit |

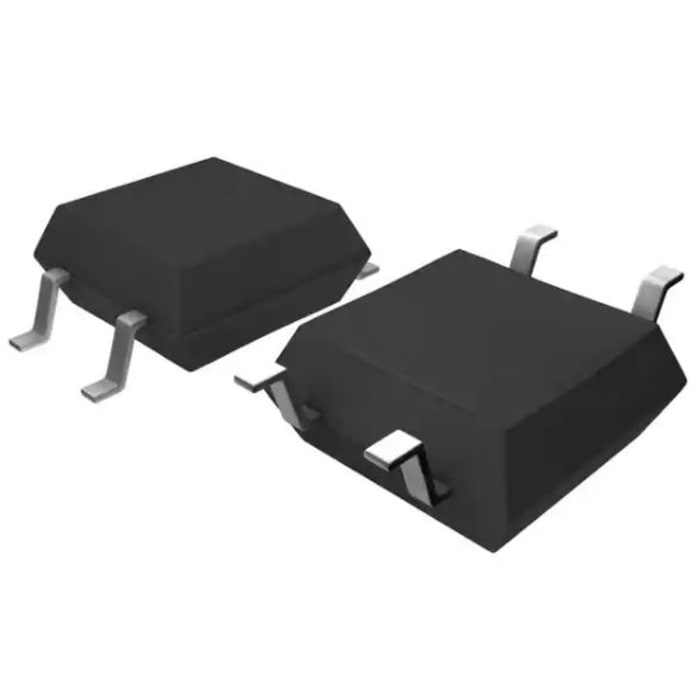

The On Semiconductor FODM3053R2-NF098 is a 1-channel optocoupler featuring a Triac output, suitable for controlling resistive and inductive loads in 115V/240V operations. It provides a high isolation voltage of 3750Vrms and a peak blocking voltage of 600V.
This optocoupler is housed in a compact 4-pin SMD, Gull Wing package, designed for surface mounting. It operates within a temperature range of -40°C to 100°C and has a maximum input current of 10mA. The device includes a zero-crossing circuit, making it suitable for applications requiring precise switching.
Key electrical characteristics include a maximum forward voltage of 1.5V and a static dV rating of 1kV/µs. The datasheet specifies various safety and insulation ratings, including a maximum working insulation voltage of 565Vpeak and minimum creepage and clearance distances of 5mm.
Applications for the FODM3053R2-NF098 include industrial controls, traffic lights, vending machines, solid-state relays, lamp ballasts, solenoid/valve controls, static AC power switches, incandescent lamp dimmers, and motor control.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The isolation voltage is 3750Vrms.
The operating temperature range is -40°C to 100°C.
It has a Triac output.
The RoHS status is listed as RoHS3 Compliant.
It is a 4-pin SMD, Gull Wing package.
