| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Common Mode Transient Immunity (Min) | |
| Current | |
| Lead Style | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Output Current | |
| Propagation Delay tpLH | |
| Pulse Width Distortion (Max) | |
| Rise | |
| Supplier Device Package | |
| Supplier Package | |
| Technology | |
| Voltage |
The ON Semiconductor FOD8384R2 is a high-speed gate drive optocoupler capable of delivering 2.5A output current, making it suitable for driving medium-power IGBT and MOSFET devices. It is designed for fast-switching applications in motor-control inverters and high-performance power systems.
This optocoupler utilizes onsemi’s OPTOPLANAR coplanar packaging technology and an optimized IC design to ensure reliable high-insulation voltage and high-noise immunity. It consists of an AlGaAs LED optically coupled to an integrated circuit with a high-speed driver for a push-pull MOSFET output stage. The device is housed in a wide-body, 5-pin, small-outline, plastic package.
Key electrical specifications include a wide supply voltage range of 15V to 30V, a minimum common mode rejection of 35 kV/µs, and fast switching speeds with a maximum propagation delay of 210 ns and a maximum pulse-width distortion of 65 ns. It also features under-voltage lockout (UVLO) with hysteresis.

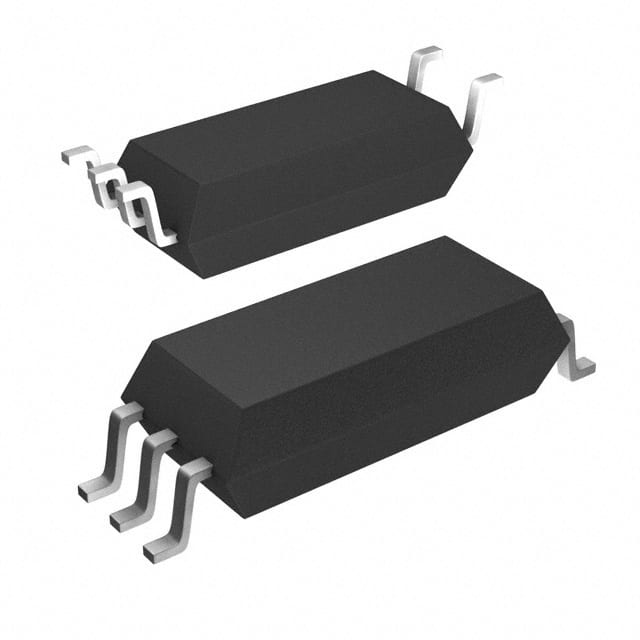

The FOD8384R2 is designed for surface mounting and comes in a 5-SOP package, specifically a 6-SOIC with a 8.80mm width. It operates within an extended industrial temperature range of -40°C to 100°C. Safety and regulatory approvals include UL1577 with 5,000 V AC RMS for 1 minute and DIN-EN/IEC60747-5-5 with 1,414 V peak working insulation voltage. It also offers greater than 8 mm creepage and clearance distance and 0.5 mm internal insulation distance.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.55 | $2.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The FOD8384R2 has a 2.5 A output current driving capability.
The operating supply voltage range for the FOD8384R2 is 15 V to 30 V.
The FOD8384R2 operates in an extended industrial temperature range from -40°C to 100°C.
The FOD8384R2 is supplied in a 5-SOP package, specifically a 6-SOIC with a 8.80mm width.
The FOD8384R2 has an insulation voltage rating of 5,000 V AC RMS for 1 minute (UL1577) and 1,414 V peak working (DIN-EN/IEC60747-5-5).
The maximum propagation delay (tpLH) for the FOD8384R2 is 210 ns.
The maximum pulse width distortion for the FOD8384R2 is 65 ns.
