| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Common Mode Transient Immunity (Min) | |
| Current | |
| Lead Style | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Propagation Delay tpLH | |
| Pulse Width Distortion (Max) | |
| Rise | |
| Supplier Device Package | |
| Technology | |
| Voltage |

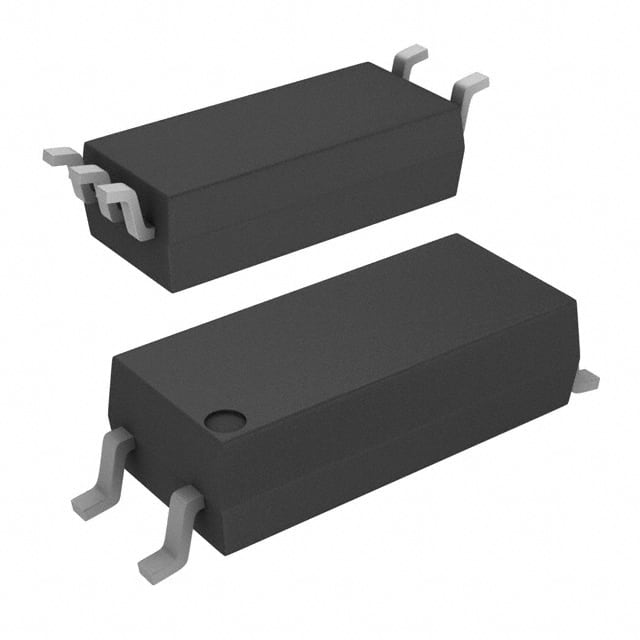

The FOD8321R2V from ON Semiconductor is a single-channel gate driver designed for isolation applications. It employs optical coupling technology to provide 5KV of isolation, ensuring signal integrity in demanding environments.
This device operates with a supply voltage range of 16V to 30V and a current rating of 25mA. Key electrical characteristics include a common mode transient immunity of 20kV/µs, a typical propagation delay of 500ns (tpLH), and a typical rise time of 60ns. The maximum pulse width distortion is specified at 300ns.
Designed for surface mounting, the FOD8321R2V comes in a 5-SOP package, specifically a 6-SOIC with a width of 0.346 inches and 5 leads. The operating temperature range is -40°C to 100°C. It holds approvals from IEC/EN/DIN and UL.
This gate driver is suitable for applications requiring high-speed signal isolation and robust performance.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.55 | $2.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 16V to 30V.
The FOD8321R2V requires surface mounting.
The operating temperature range is -40°C to 100°C.
The package is a 5-SOP, specifically a 6-SOIC (0.346", 8.80mm Width), 5 Leads.
The minimum common mode transient immunity is 20kV/µs.
The propagation delay tpLH is 500ns.
The typical rise time is 60ns.
